Series Click-Torque Wrenches แบรนด์ WERA

9530 Torque wrench set for heat pumps/air conditioning, 4 pieces

WERA

W181-05136076001

05136076001

Click-Torque A 5 torque wrench with reversible ratchet, 2.5-25 Nm Mounting size:1/4″ mm Main scale graduation:0.10 mm Main scale measuring range:2.5-25 mm Subscale measuring range:1-18 mm Torque wrench length:290 mm Handle length G2:121 mm Clock diameter:42 mm Diameter of the head:25 mm Height ratchet head H2:11.5 mm Torque wrench length (inches):11 27/64″ inch Handle length G2 (inches):4 49/64″ inch Watch diameter (inches):1 21/32″ inch Tip diameter (inches):1″ inch Ratchet head height H2 (inches):7/16″ inch

WERA

W181-05075604001

05075604001

Click-Torque A 6 torque wrench with reversible ratchet, 2.5-25 Nm Mounting size:1/4″ mm Main scale graduation:0.10 mm Main scale measuring range:2.5-25 mm Subscale measuring range:1-18 mm Torque wrench length:290 mm Handle length G2:121 mm Clock diameter:42 mm Diameter of the head:25 mm Height ratchet head H2:11.5 mm Torque wrench length (inches):11 27/64″ inch Handle length G2 (inches):4 49/64″ inch Watch diameter (inches):1 21/32″ inch Tip diameter (inches):1″ inch Ratchet head height H2 (inches):7/16″ inch

WERA

W181-05075605001

05075605001

Click-Torque X 1 torque wrench for insert tools, 2.5-25 Nm Mounting size:9×12 mm Main scale measuring range:2.5-25 mm Main scale graduation:0.10 mm Subscale measuring range:1-18 mm Torque wrench length:292 mm Stichmaß Prüfaufsatz:17.5 mm Strecke Kraftanlagepunkt/Prüfgerät-Achse:240.0 mm Handle length G2:121 mm Clock diameter:42 mm Diameter of the head:24 mm Height ratchet head H2:20 mm Torque wrench length (inches):11 9/64″ inch Handle length G2 (inches):4 49/64″ inch Watch diameter (inches):1 21/32″ inch Tip diameter (inches):15/16″ inch Ratchet head height H2 (inches):25/32″ inch Hauptskala Messbereich Min:2.5 mm Hauptskala Messbereich Max:25.0 mm Nebenskala Messbereich Min:1.0 mm Nebenskala Messbereich Max:18.0 mm

WERA

W181-05075651001

05075651001

Click-Torque X 2 torque wrench for insert tools, 10-50 Nm Mounting size:9×12 mm Main scale measuring range:10-50 mm Main scale graduation:0.25 mm Subscale measuring range:8-36 mm Torque wrench length:347 mm Stichmaß Prüfaufsatz:17.5 mm Strecke Kraftanlagepunkt/Prüfgerät-Achse:285.0 mm Handle length G2:140 mm Clock diameter:47 mm Diameter of the head:29 mm Height ratchet head H2:20 mm Torque wrench length (inches):13 5/16″ inch Handle length G2 (inches):5 33/64″ inch Watch diameter (inches):1 27/32″ inch Tip diameter (inches):1 9/64″ inch Ratchet head height H2 (inches):25/32″ inch Hauptskala Messbereich Min:10.0 mm Hauptskala Messbereich Max:50.0 mm Nebenskala Messbereich Min:8.0 mm Nebenskala Messbereich Max:36.0 mm

WERA

W181-05075652001

05075652001

Click-Torque X 7 torque wrench for insert tools, 10-100 Nm Mounting size:14×18 mm Main scale measuring range:10-100 mm Main scale graduation:0.5 mm Subscale measuring range:8-73 mm Torque wrench length:395 mm Stichmaß Prüfaufsatz:25.5 mm Strecke Kraftanlagepunkt/Prüfgerät-Achse:343.0 mm Handle length G2:140 mm Clock diameter:47 mm Diameter of the head:29 mm Height ratchet head H2:20 mm Torque wrench length (inches):14 41/64″ inch Handle length G2 (inches):5 33/64″ inch Watch diameter (inches):1 27/32″ inch Tip diameter (inches):1 9/64″ inch Ratchet head height H2 (inches):25/32″ inch Hauptskala Messbereich Min:10.0 mm Hauptskala Messbereich Max:100.0 mm Nebenskala Messbereich Min:8.0 mm Nebenskala Messbereich Max:73.0 mm

WERA

W181-05075657001

05075657001

Click-Torque C 3 set 2 for cement screwdriving, 40-200 Nm, 11 pieces

WERA

W181-05075681001

05075681001

Bicycle Set Torque 1, 2.5-25 Nm, 16 pieces

WERA

W181-05004180001

05004180001

Click-Torque A 6 Set 1, 2.5-25 Nm, 20 pieces

WERA

W181-05130110001

05130110001

Click-Torque C 3 Set 1, 40-200 Nm, 13 pieces

WERA

W181-05075680001

05075680001

Click-Torque B 1 torque wrench with reversible ratchet, 10-50 Nm Mounting size:3/8″ mm Main scale graduation:0.25 mm Main scale measuring range:10-50 mm Subscale measuring range:8-36 mm Torque wrench length:360 mm Handle length G2:140 mm Clock diameter:47 mm Diameter of the head:35 mm Height ratchet head H2:16.5 mm Torque wrench length (inches):14 11/64″ inch Handle length G2 (inches):5 33/64″ inch Watch diameter (inches):1 27/32″ inch Tip diameter (inches):1 3/8″ inch Ratchet head height H2 (inches):5/8″ inch

WERA

W181-05075610001

05075610001

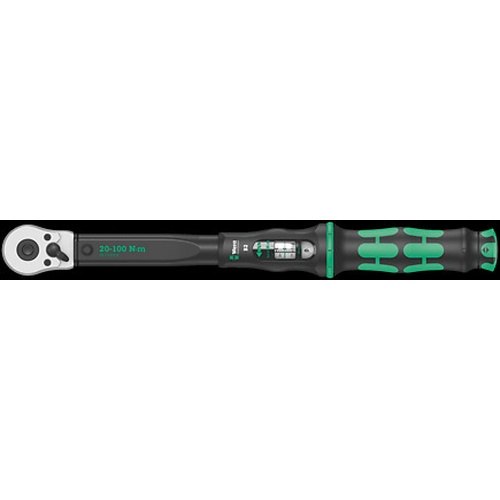

Click-Torque B 2 torque wrench with reversible ratchet, 20-100 Nm Mounting size:3/8″ mm Main scale graduation:0.5 mm Main scale measuring range:20-100 mm Subscale measuring range:15-73 mm Torque wrench length:405 mm Handle length G2:140 mm Clock diameter:47 mm Diameter of the head:43 mm Height ratchet head H2:18.5 mm Torque wrench length (inches):15 15/16″ inch Handle length G2 (inches):5 33/64″ inch Watch diameter (inches):1 27/32″ inch Tip diameter (inches):1 11/16″ inch Ratchet head height H2 (inches):45/64″ inch

WERA

W181-05075611001

05075611001

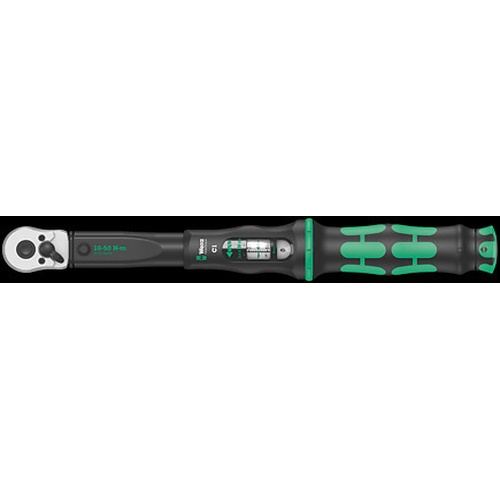

Click-Torque C 1 torque wrench with reversible ratchet, 10-50 Nm Mounting size:1/2″ mm Main scale graduation:0.25 mm Main scale measuring range:10-50 mm Subscale measuring range:8-36 mm Torque wrench length:360 mm Handle length G2:140 mm Clock diameter:47 mm Diameter of the head:35 mm Height ratchet head H2:16.5 mm Torque wrench length (inches):14 11/64″ inch Handle length G2 (inches):5 33/64″ inch Watch diameter (inches):1 27/32″ inch Tip diameter (inches):1 3/8″ inch Ratchet head height H2 (inches):5/8″ inch

WERA

W181-05075620001

05075620001

Click-Torque C 2 torque wrench with reversible ratchet, 20-100 Nm Mounting size:1/2″ mm Main scale graduation:0.5 mm Main scale measuring range:20-100 mm Subscale measuring range:15-73 mm Torque wrench length:405 mm Handle length G2:140 mm Clock diameter:47 mm Diameter of the head:43 mm Height ratchet head H2:18.5 mm Torque wrench length (inches):15 15/16″ inch Handle length G2 (inches):5 33/64″ inch Watch diameter (inches):1 27/32″ inch Tip diameter (inches):1 11/16″ inch Ratchet head height H2 (inches):45/64″ inch

WERA

W181-05075621001

05075621001

Click-Torque C 3 torque wrench with reversible ratchet, 40-200 Nm Mounting size:1/2″ mm Main scale graduation:1.0 mm Main scale measuring range:40-200 mm Subscale measuring range:30-146 mm Torque wrench length:510 mm Handle length G2:140 mm Clock diameter:47 mm Diameter of the head:43 mm Height ratchet head H2:18.5 mm Torque wrench length (inches):20 5/64″ inch Handle length G2 (inches):5 33/64″ inch Watch diameter (inches):1 27/32″ inch Tip diameter (inches):1 11/16″ inch Ratchet head height H2 (inches):45/64″ inch

WERA

W181-05075622001

05075622001

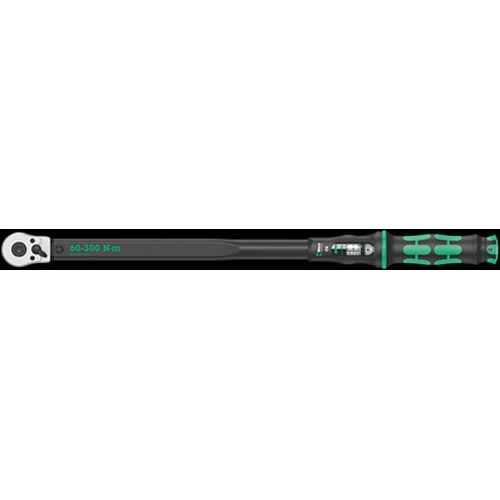

Click-Torque C 4 torque wrench with reversible ratchet, 60-300 Nm Mounting size:1/2″ mm Main scale graduation:1.0 mm Main scale measuring range:60-300 mm Subscale measuring range:45-220 mm Torque wrench length:595 mm Handle length G2:140 mm Clock diameter:47 mm Diameter of the head:43 mm Height ratchet head H2:18.5 mm Torque wrench length (inches):23 27/64″ inch Handle length G2 (inches):5 33/64″ inch Watch diameter (inches):1 27/32″ inch Tip diameter (inches):1 11/16″ inch Ratchet head height H2 (inches):45/64″ inch

WERA

W181-05075623001

05075623001

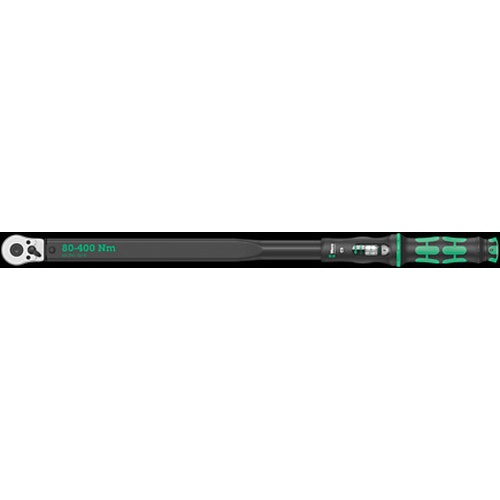

Click-Torque C 5 torque wrench with reversible ratchet, 80-400 Nm Mounting size:1/2″ mm Main scale graduation:1.0 mm Main scale measuring range:80-400 mm Subscale measuring range:60-295 mm Torque wrench length:680 mm Handle length G2:140 mm Clock diameter:47 mm Diameter of the head:43 mm Height ratchet head H2:18.5 mm Torque wrench length (inches):26 49/64″ inch Handle length G2 (inches):5 33/64″ inch Watch diameter (inches):1 27/32″ inch Tip diameter (inches):1 11/16″ inch Ratchet head height H2 (inches):45/64″ inch

WERA

W181-05075624001

05075624001

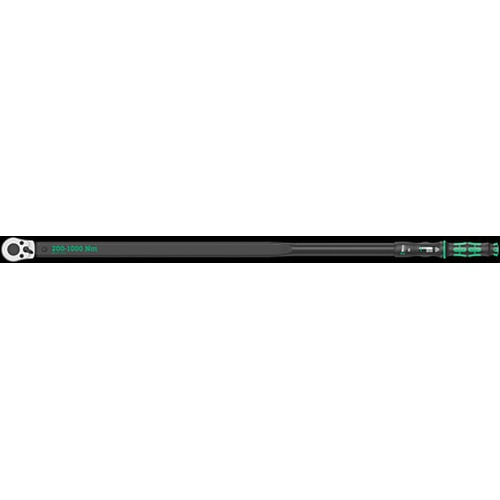

Click-Torque E 1 torque wrench with reversible ratchet, 200-1000 Nm Mounting size:3/4″ mm Main scale graduation:1.00 mm Main scale measuring range:200-1000 mm Subscale measuring range:148-737 mm Torque wrench length:1250 mm Handle length G2:140 mm Clock diameter:47 mm Diameter of the head:63 mm Height ratchet head H2:30 mm Torque wrench length (inches):49 7/32″ inch Handle length G2 (inches):5 33/64″ inch Watch diameter (inches):1 27/32″ inch Tip diameter (inches):2 31/64″ inch Ratchet head height H2 (inches):1 3/16″ inch

WERA

W181-05075630001

05075630001

Click-Torque C 2 Push R/L adjustable torque wrench for clockwise and anti-clockwise torque-control, 20-100 Nm Mounting size:1/2″ mm Main scale graduation:0.5 mm Main scale measuring range:20-100 mm Subscale measuring range:15-73 mm Torque wrench length:405 mm Handle length G2:140 mm Clock diameter:47 mm Diameter of the head:43 mm Height ratchet head H2:18.5 mm Torque wrench length (inches):15 15/16″ inch Handle length G2 (inches):5 33/64″ inch Watch diameter (inches):1 27/32″ inch Tip diameter (inches):1 11/16″ inch Ratchet head height H2 (inches):45/64″ inch

WERA

W181-05075625001

05075625001

Click-Torque C 3 Push R/L adjustable torque wrench for clockwise and anti-clockwise torque-control, 40-200 Nm Mounting size:1/2″ mm Main scale graduation:1.0 mm Main scale measuring range:40-200 mm Subscale measuring range:30-146 mm Torque wrench length:510 mm Handle length G2:140 mm Clock diameter:47 mm Diameter of the head:43 mm Height ratchet head H2:18.5 mm Torque wrench length (inches):20 5/64″ inch Handle length G2 (inches):5 33/64″ inch Watch diameter (inches):1 27/32″ inch Tip diameter (inches):1 11/16″ inch Ratchet head height H2 (inches):45/64″ inch

WERA

W181-05075626001

05075626001

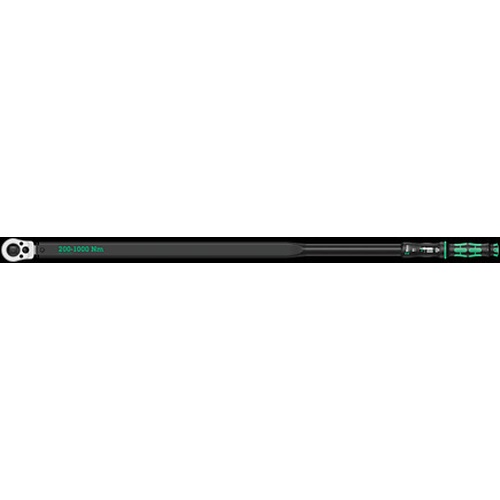

Click-Torque E 1 Push R/L adjustable torque wrench for clockwise and anti-clockwise torque-control, 200-1000 Nm Mounting size:3/4″ mm Main scale graduation:1.0 mm Main scale measuring range:200-1000 mm Subscale measuring range:148-737 mm Torque wrench length:1250 mm Handle length G2:140 mm Clock diameter:47 mm Diameter of the head:63 mm Height ratchet head H2:30 mm Torque wrench length (inches):49 7/32″ inch Handle length G2 (inches):5 33/64″ inch Watch diameter (inches):1 27/32″ inch Tip diameter (inches):2 31/64″ inch Ratchet head height H2 (inches):1 3/16″ inch

WERA

W181-05075631001

05075631001

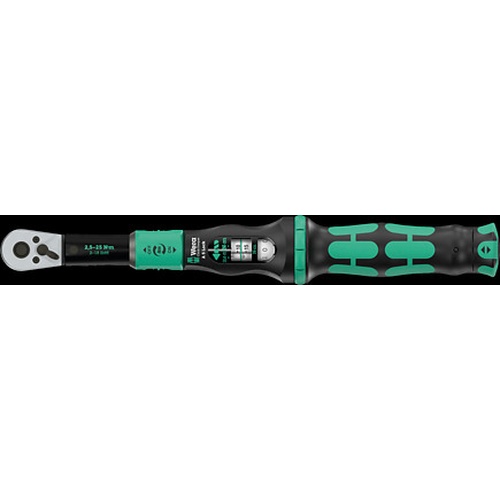

Click-Torque Lock A 5 Torque wrench, adjustable, Torque Lock function, reversible ratchet, clockwise torque operation, 2.5-25 Nm Mounting size:1/4″ mm Main scale graduation:0.10 mm Main scale measuring range:2.5-25 mm Subscale measuring range:1-18 mm Torque wrench length:299 mm Handle length G2:123 mm Clock diameter:42 mm Diameter of the head:26 mm Height ratchet head H2:11.75 mm Torque wrench length (inches):11 49/64″ inch Handle length G2 (inches):4 53/64″ inch Watch diameter (inches):1 41/64″ inch Tip diameter (inches):1 1/64″ inch Ratchet head height H2 (inches):29/64″ inch

WERA

W181-05075690001

05075690001

Click-Torque Lock A 6 Torque wrench, adjustable, Torque Lock function, reversible ratchet, clockwise torque operation, 2.5-25 Nm Mounting size:1/4″ mm Main scale graduation:0.10 mm Main scale measuring range:2.5-25 mm Subscale measuring range:1-18 mm Torque wrench length:299 mm Handle length G2:123 mm Clock diameter:42 mm Diameter of the head:26 mm Height ratchet head H2:11.75 mm Torque wrench length (inches):11 49/64″ inch Handle length G2 (inches):4 53/64″ inch Watch diameter (inches):1 41/64″ inch Tip diameter (inches):1 1/64″ inch Ratchet head height H2 (inches):29/64″ inch

WERA

W181-05075691001

05075691001

Click-Torque Lock C 3 Torque wrench, adjustable, reversible ratchet, Torque Lock function, 40-200 Nm Mounting size:1/2″ mm Main scale graduation:1.0 mm Main scale measuring range:40-200 mm Subscale measuring range:30-146 mm Torque wrench length:512 mm Handle length G2:140 mm Clock diameter:47 mm Diameter of the head:43 mm Height ratchet head H2:18.4 mm Torque wrench length (inches):20 5/32″ inch Handle length G2 (inches):5 1/2″ inch Watch diameter (inches):1 27/32″ inch Tip diameter (inches):1 11/16″ inch Ratchet head height H2 (inches):23/32″ inch

WERA

W181-05075692001

05075692001

Click-Torque Lock A 5 R/L Torque wrench, adjustable, Torque Lock function, square head insert (1/4″), clockwise/counterclockwise torque operation, 2.5-25 Nm Mounting size:1/4″ mm Main scale graduation:0.10 mm Main scale measuring range:2.5-25 mm Subscale measuring range:1-18 mm Torque wrench length:299 mm Handle length G2:123 mm Clock diameter:42 mm Diameter of the head:26 mm Height ratchet head H2:11.75 mm Torque wrench length (inches):11 49/64″ inch Handle length G2 (inches):4 53/64″ inch Watch diameter (inches):1 41/64″ inch Tip diameter (inches):1 1/64″ inch Ratchet head height H2 (inches):29/64″ inch

WERA

W181-05075693001

05075693001

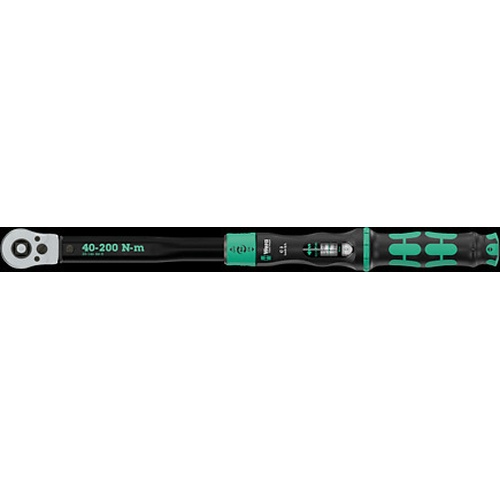

Click-Torque Lock C 3 R/L Torque wrench, adjustable, Torque function, square head insert (1/2″), clockwise/counterclockwise torque operation, 40-200 Nm Mounting size:1/2″ mm Main scale graduation:1.0 mm Main scale measuring range:40-200 mm Subscale measuring range:30-146 mm Torque wrench length:512 mm Handle length G2:140 mm Clock diameter:47 mm Diameter of the head:43 mm Height ratchet head H2:18.4 mm Torque wrench length (inches):20 5/32″ inch Handle length G2 (inches):5 1/2″ inch Watch diameter (inches):1 27/32″ inch Tip diameter (inches):1 11/16″ inch Ratchet head height H2 (inches):23/32″ inch

WERA

W181-05075695001

05075695001

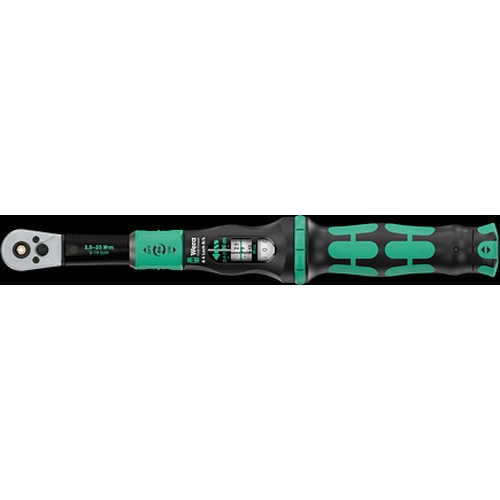

Click-Torque Lock A 6 R/L Torque wrench, adjustable, Torque Lock function, continuous bit mounting (1/4″), 2.5-25 Nm Mounting size:1/4″ mm Main scale graduation:0.10 mm Main scale measuring range:2.5-25 mm Subscale measuring range:1-18 mm Torque wrench length:299 mm Handle length G2:123 mm Clock diameter:42 mm Diameter of the head:26 mm Height ratchet head H2:11.75 mm Torque wrench length (inches):11 49/64″ inch Handle length G2 (inches):4 53/64″ inch Watch diameter (inches):1 41/64″ inch Tip diameter (inches):1 1/64″ inch Ratchet head height H2 (inches):29/64″ inch

WERA

W181-05075694001

05075694001

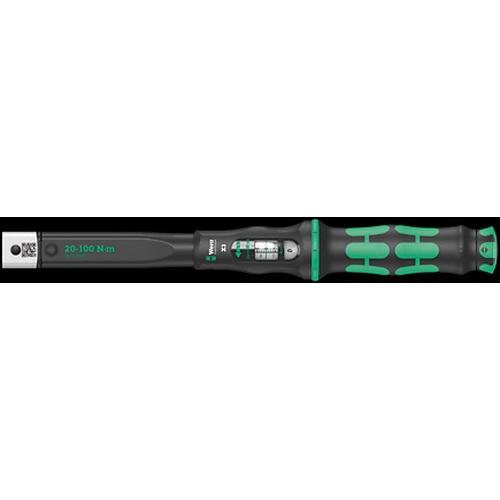

Click-Torque X 3 torque wrench for insert tools, 20-100 Nm Mounting size:9×12 mm Main scale measuring range:20-100 mm Main scale graduation:0.5 mm Subscale measuring range:15-73 mm Torque wrench length:390 mm Stichmaß Prüfaufsatz:17.5 mm Strecke Kraftanlagepunkt/Prüfgerät-Achse:329.0 mm Handle length G2:140 mm Clock diameter:47 mm Diameter of the head:29 mm Height ratchet head H2:20 mm Torque wrench length (inches):14 41/64″ inch Handle length G2 (inches):5 33/64″ inch Watch diameter (inches):1 27/32″ inch Tip diameter (inches):1 9/64″ inch Ratchet head height H2 (inches):25/32″ inch Hauptskala Messbereich Min:20.0 mm Hauptskala Messbereich Max:100.0 mm Nebenskala Messbereich Min:15.0 mm Nebenskala Messbereich Max:73.0 mm

WERA

W181-05075653001

05075653001

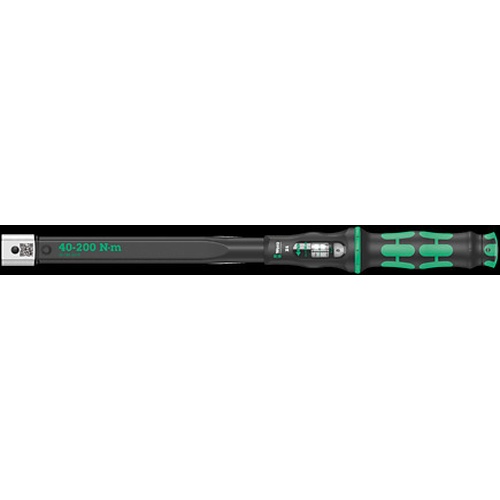

Click-Torque X 4 torque wrench for insert tools, 40-200 Nm Mounting size:14×18 mm Main scale measuring range:40-200 mm Main scale graduation:1.0 mm Subscale measuring range:30-146 mm Torque wrench length:487 mm Stichmaß Prüfaufsatz:25.5 mm Strecke Kraftanlagepunkt/Prüfgerät-Achse:435.0 mm Handle length G2:140 mm Clock diameter:47 mm Diameter of the head:32 mm Height ratchet head H2:26 mm Torque wrench length (inches):18 57/64″ inch Handle length G2 (inches):5 33/64″ inch Watch diameter (inches):1 27/32″ inch Tip diameter (inches):1 17/64″ inch Ratchet head height H2 (inches):1 1/32″ inch Hauptskala Messbereich Min:40.0 mm Hauptskala Messbereich Max:200.0 mm Nebenskala Messbereich Min:30.0 mm Nebenskala Messbereich Max:146.0 mm

WERA

W181-05075654001

05075654001

Click-Torque X 5 torque wrench for insert tools, 60-300 Nm Mounting size:14×18 mm Main scale measuring range:60-300 mm Main scale graduation:1.0 mm Subscale measuring range:45-220 mm Torque wrench length:578 mm Stichmaß Prüfaufsatz:25.5 mm Strecke Kraftanlagepunkt/Prüfgerät-Achse:525.0 mm Handle length G2:140 mm Clock diameter:47 mm Diameter of the head:32 mm Height ratchet head H2:26 mm Torque wrench length (inches):22 7/16″ inch Handle length G2 (inches):5 33/64″ inch Watch diameter (inches):1 27/32″ inch Tip diameter (inches):1 17/64″ inch Ratchet head height H2 (inches):1 1/32″ inch Hauptskala Messbereich Min:60.0 mm Hauptskala Messbereich Max:300.0 mm Nebenskala Messbereich Min:45.0 mm Nebenskala Messbereich Max:220.0 mm

WERA

W181-05075655001

05075655001

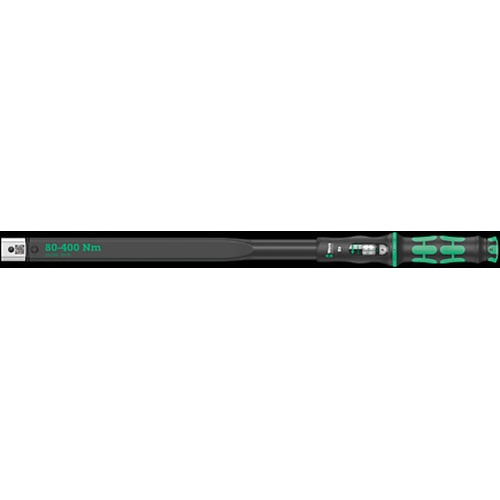

Click-Torque X 6 torque wrench for insert tools, 80-400 Nm Mounting size:14×18 mm Main scale measuring range:80-400 mm Main scale graduation:1.0 mm Subscale measuring range:60-295 mm Torque wrench length:665 mm Stichmaß Prüfaufsatz:25.5 mm Strecke Kraftanlagepunkt/Prüfgerät-Achse:615.0 mm Handle length G2:140 mm Clock diameter:47 mm Diameter of the head:32 mm Height ratchet head H2:26 mm Torque wrench length (inches):25 25/32″ inch Handle length G2 (inches):5 33/64″ inch Watch diameter (inches):1 27/32″ inch Tip diameter (inches):1 17/64″ inch Ratchet head height H2 (inches):1 1/32″ inch Hauptskala Messbereich Min:80.0 mm Hauptskala Messbereich Max:400.0 mm Nebenskala Messbereich Min:60.0 mm Nebenskala Messbereich Max:295.0 mm

WERA

W181-05075656001

05075656001

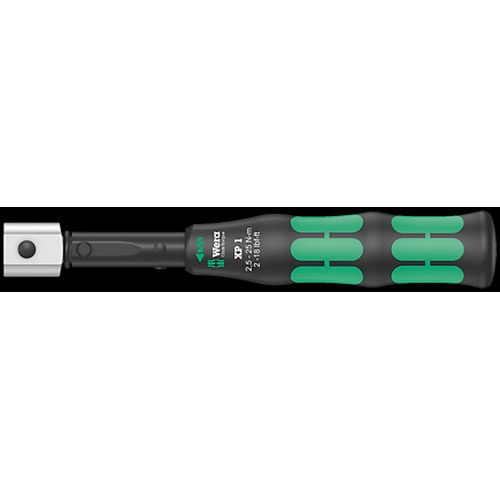

Click-Torque XP 1 pre-set adjustable torque wrench for insert tools, 2.5-25 Nm, 2.5 Nm Mounting size:9×12 mm Main scale pre-set reading:2.5 mm Main scale measuring range:2.5-25 mm Subscale measuring range:2-18 mm Torque wrench length:217 mm Stichmaß Prüfaufsatz:17.5 mm Strecke Kraftanlagepunkt/Prüfgerät-Achse:180.0 mm Handle length G2:137 mm Clock diameter:35 mm Diameter of the head:24 mm Height ratchet head H2:20 mm Torque wrench length (inches):8 35/64″ inch Handle length G2 (inches):5 25/64″ inch Watch diameter (inches):1 3/8″ inch Tip diameter (inches):15/16″ inch Ratchet head height H2 (inches):25/32″ inch Hauptskala Messbereich Min:2.5 mm Hauptskala Messbereich Max:25.0 mm Nebenskala Messbereich Min:2.0 mm Nebenskala Messbereich Max:18.0 mm

WERA

W181-05075670001

05075670001

Click-Torque XP 1 pre-set adjustable torque wrench for insert tools, 2.5-25 Nm, 2.5 Nm Mounting size:9×12 mm Main scale pre-set reading:2.5 mm Main scale measuring range:2.5-25 mm Subscale measuring range:2-18 mm Torque wrench length:217 mm Stichmaß Prüfaufsatz:17.5 mm Strecke Kraftanlagepunkt/Prüfgerät-Achse:180.0 mm Handle length G2:137 mm Clock diameter:35 mm Diameter of the head:24 mm Height ratchet head H2:20 mm Torque wrench length (inches):8 35/64″ inch Handle length G2 (inches):5 25/64″ inch Watch diameter (inches):1 3/8″ inch Tip diameter (inches):15/16″ inch Ratchet head height H2 (inches):25/32″ inch Hauptskala Messbereich Min:2.5 mm Hauptskala Messbereich Max:25.0 mm Nebenskala Messbereich Min:2.0 mm Nebenskala Messbereich Max:18.0 mm

WERA

W181-05075670010

05075670010

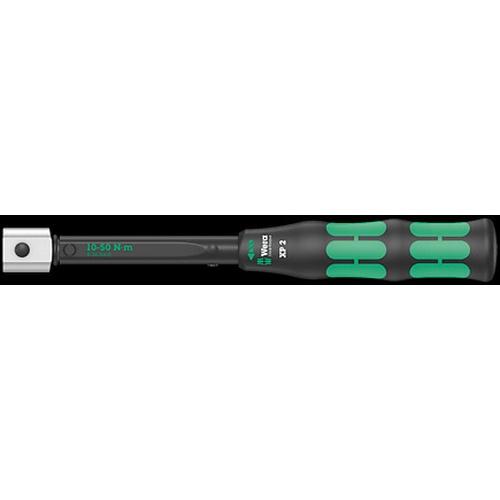

Click-Torque XP 2 pre-set adjustable torque wrench for insert tools, 10-50 Nm, 10 Nm Mounting size:9×12 mm Main scale pre-set reading:10.0 mm Main scale measuring range:10-50 mm Subscale measuring range:8-36 mm Torque wrench length:262 mm Stichmaß Prüfaufsatz:17.5 mm Strecke Kraftanlagepunkt/Prüfgerät-Achse:225.0 mm Handle length G2:137 mm Clock diameter:35 mm Diameter of the head:24 mm Height ratchet head H2:20 mm Torque wrench length (inches):10 5/16″ inch Handle length G2 (inches):5 25/64″ inch Watch diameter (inches):1 3/8″ inch Tip diameter (inches):15/16″ inch Ratchet head height H2 (inches):25/32″ inch Hauptskala Messbereich Min:10.0 mm Hauptskala Messbereich Max:50.0 mm Nebenskala Messbereich Min:8.0 mm Nebenskala Messbereich Max:36.0 mm

WERA

W181-05075671001

05075671001

Click-Torque XP 2 pre-set adjustable torque wrench for insert tools, 10-50 Nm, 10 Nm Mounting size:9×12 mm Main scale pre-set reading:10.0 mm Main scale measuring range:10-50 mm Subscale measuring range:8-36 mm Torque wrench length:262 mm Stichmaß Prüfaufsatz:17.5 mm Strecke Kraftanlagepunkt/Prüfgerät-Achse:225.0 mm Handle length G2:137 mm Clock diameter:35 mm Diameter of the head:24 mm Height ratchet head H2:20 mm Torque wrench length (inches):10 5/16″ inch Handle length G2 (inches):5 25/64″ inch Watch diameter (inches):1 3/8″ inch Tip diameter (inches):15/16″ inch Ratchet head height H2 (inches):25/32″ inch Hauptskala Messbereich Min:10.0 mm Hauptskala Messbereich Max:50.0 mm Nebenskala Messbereich Min:8.0 mm Nebenskala Messbereich Max:36.0 mm

WERA

W181-05075671010

05075671010

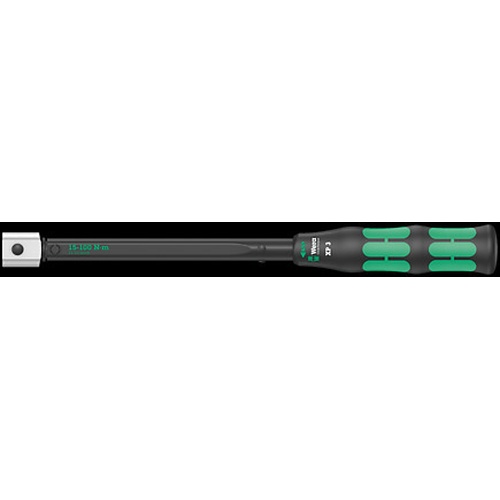

Click-Torque XP 3 pre-set adjustable torque wrench for insert tools, 15-100 Nm, 15 Nm Mounting size:9×12 mm Main scale pre-set reading:15.0 mm Main scale measuring range:15-100 mm Subscale measuring range:11-74 mm Torque wrench length:332 mm Stichmaß Prüfaufsatz:17.5 mm Strecke Kraftanlagepunkt/Prüfgerät-Achse:296.0 mm Handle length G2:137 mm Clock diameter:35 mm Diameter of the head:24 mm Height ratchet head H2:20 mm Torque wrench length (inches):13 5/64″ inch Handle length G2 (inches):5 25/64″ inch Watch diameter (inches):1 3/8″ inch Tip diameter (inches):15/16″ inch Ratchet head height H2 (inches):25/32″ inch Hauptskala Messbereich Min:15.0 mm Hauptskala Messbereich Max:100.0 mm Nebenskala Messbereich Min:11.0 mm Nebenskala Messbereich Max:74.0 mm

WERA

W181-05075672001

05075672001

Click-Torque XP 3 pre-set adjustable torque wrench for insert tools, 15-100 Nm, 15 Nm Mounting size:9×12 mm Main scale pre-set reading:15.0 mm Main scale measuring range:15-100 mm Subscale measuring range:11-74 mm Torque wrench length:332 mm Stichmaß Prüfaufsatz:17.5 mm Strecke Kraftanlagepunkt/Prüfgerät-Achse:296.0 mm Handle length G2:137 mm Clock diameter:35 mm Diameter of the head:24 mm Height ratchet head H2:20 mm Torque wrench length (inches):13 5/64″ inch Handle length G2 (inches):5 25/64″ inch Watch diameter (inches):1 3/8″ inch Tip diameter (inches):15/16″ inch Ratchet head height H2 (inches):25/32″ inch Hauptskala Messbereich Min:15.0 mm Hauptskala Messbereich Max:100.0 mm Nebenskala Messbereich Min:11.0 mm Nebenskala Messbereich Max:74.0 mm

WERA

W181-05075672010

05075672010

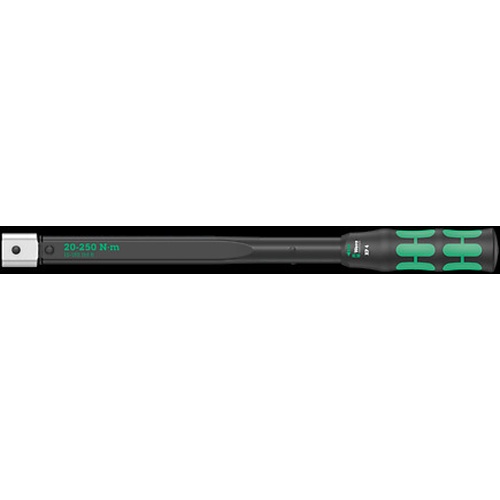

Click-Torque XP 4 pre-set adjustable torque wrench for insert tools, 20-250 Nm, 20 Nm Mounting size:14×18 mm Main scale pre-set reading:20.0 mm Main scale measuring range:20-250 mm Subscale measuring range:15-184 mm Torque wrench length:457 mm Stichmaß Prüfaufsatz:25.5 mm Strecke Kraftanlagepunkt/Prüfgerät-Achse:430.0 mm Handle length G2:145 mm Clock diameter:41 mm Diameter of the head:32 mm Height ratchet head H2:26 mm Torque wrench length (inches):17 63/64″ inch Handle length G2 (inches):5 45/64″ inch Watch diameter (inches):1 39/64″ inch Tip diameter (inches):1 17/64″ inch Ratchet head height H2 (inches):1 1/32″ inch Hauptskala Messbereich Min:20.0 mm Hauptskala Messbereich Max:250.0 mm Nebenskala Messbereich Min:15.0 mm Nebenskala Messbereich Max:184.0 mm

WERA

W181-05075673001

05075673001

Click-Torque XP 4 pre-set adjustable torque wrench for insert tools, 20-250 Nm, 20 Nm Mounting size:14×18 mm Main scale pre-set reading:20.0 mm Main scale measuring range:20-250 mm Subscale measuring range:15-184 mm Torque wrench length:457 mm Stichmaß Prüfaufsatz:25.5 mm Strecke Kraftanlagepunkt/Prüfgerät-Achse:430.0 mm Handle length G2:145 mm Clock diameter:41 mm Diameter of the head:32 mm Height ratchet head H2:26 mm Torque wrench length (inches):17 63/64″ inch Handle length G2 (inches):5 45/64″ inch Watch diameter (inches):1 39/64″ inch Tip diameter (inches):1 17/64″ inch Ratchet head height H2 (inches):1 1/32″ inch Hauptskala Messbereich Min:20.0 mm Hauptskala Messbereich Max:250.0 mm Nebenskala Messbereich Min:15.0 mm Nebenskala Messbereich Max:184.0 mm

WERA

W181-05075673010

05075673010

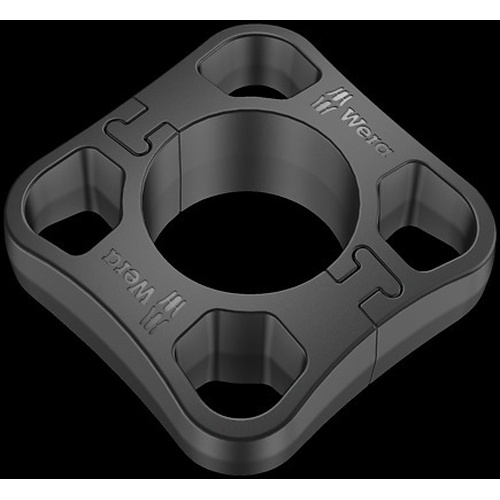

7761 Click-Torque collar M4 Width:55.0 mm Height:55.0 mm Depth:21.5 mm

WERA

W181-05078706001

05078706001
