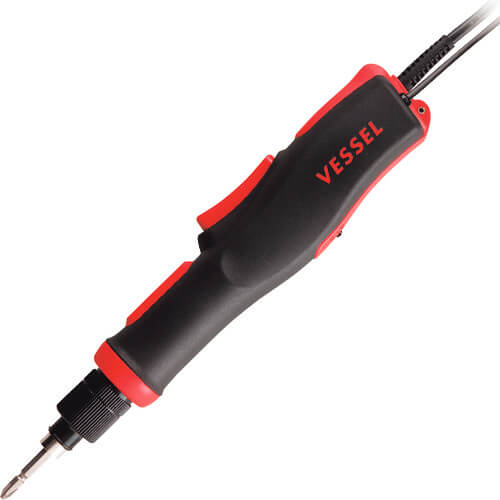

Equipped with signal extraction line for 3 types of output signals (start, torque increase, and reverse rotation switch)that can be controlled by an external device (PLC)and 1 type of input signal (electric screwdriver stoppage).
Use of slotless/brushless motor improves tightening precision, efficiency, and maintainability.
Grip is easy to hold for having a gel pad that absorbs vibrations, which makes it less tiring (ergonomic design).
Equipped with a tamper-prevention sleeve which prevents unintended adjustments.
There are no connection connectors on the main unit side and the power cord is built in (2.5m).
ข้อมูลสินค้า
Rated Output Torque (N,m) : 1.6 to 4.5
No Load Rotation Speed (min[[UE-1]]) : 1000
Compatible screw (mm)Small screw : M3.5 to 5.0
Compatible screw (mm)Tapping screw : less than or equal to4
Electricity Consumption (W) : AC100V 50/60Hz 120
Total Length (mm) : 290
Power Supply : AC Type
Torque adjustment ring : 16 steps x 8 gauge increments
Power Cord Length : 2.5m
PSE standard
อุปกรณ์ในกล่อง
Suspension Ring : 1 piece
Tamper-prevention Sleeve : 1 piece
Set Screw (M3 x 3) : 2 pieces
Hexagonal Wrench (H1.5) : 1 piece
3P2P Conversion Adapter : 1 piece
น้ำหนัก
1.20 kg
คำเตือน
Do not connect any device other than PLC to the signal output wire.
Do not directly connect the + side of power supply to the signal output wire.
Do not directly connect relay, motor, lump, or other object to the signal output wire and operate.
Ensure to use signal input wire of DC24 plus or minus 10%.
