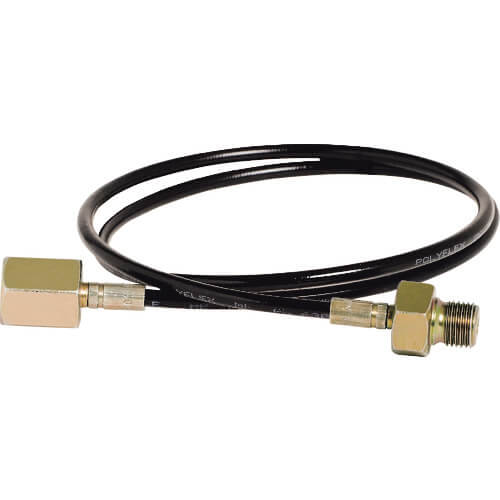

A very flexible thermoplastic high pressure hose assembly. Gauge does not need to be directly attached to a hydraulic system in a narrow place. Easy remote pressure testing is possible with this product.
ข้อมูลสินค้า
Maximum Working Pressure (MPa) : 60
Connection Port Diameter D1 : G1/4 External Thread
Connection Port Diameter D2 : G1/4 internal thread
Total Length (mm) : 1650
Outer Diameter x Inner Diameter (mm) : 5.0 x 2.0
Thickness (mm) : 1.5
Working Fluid : Hydraulic Oil
Working Temperature Range : -30 to 100degreesC
Hose fitting female thread side comes with an O-ring
