Ball screw type dry cylinder with high power transmission efficiency is adopted. (max. consecutive use : 100,000 times, vertical movement : 80 times/h)
There is no inertia at the time of ascending/descending stop, realizing smooth lifting and stopping.
Maintenance free by grease lubrication.
Low noise (62dB).
ข้อมูลสินค้า
Equal Load (kg) : 1500
Table Dimension (mm) W x L : 1000 x 2000
Table Height (mm) : 280 to 1250
Rise/fall time (sec)50Hz : 34/34
Rise/fall time (sec)60Hz : 28/28
Motor Output (kW) : 0.75
Lift System : Electric Ball Screw Type
Power supply : Three phase 200V
Power cord : 4m
Operation Method : Foot Switch (cord length : 2m)
Unit : Built-in Type
Max. frequency of use : 80 times/h
น้ำหนัก
450.00 kg
การใช้งาน
Lifts as luggage lift and as a working table.
คำเตือน

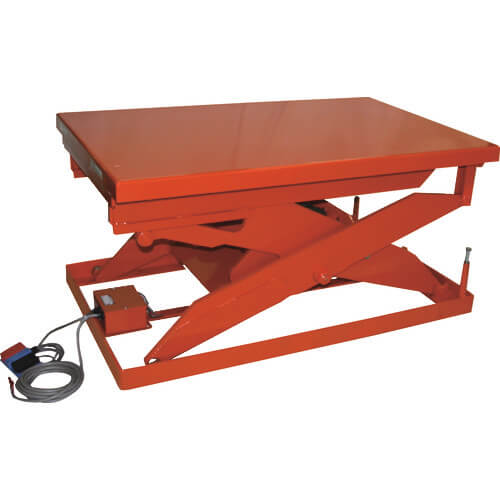

Set the allowable weight when transferring the work to the arrow [[1]] 1/4 and [[2]] 1/2 of the equal load, as shown in the main body photo.
Exceeding the max. use frequency may cause failures.
Because handover on the car, Unloading by customer is required.
