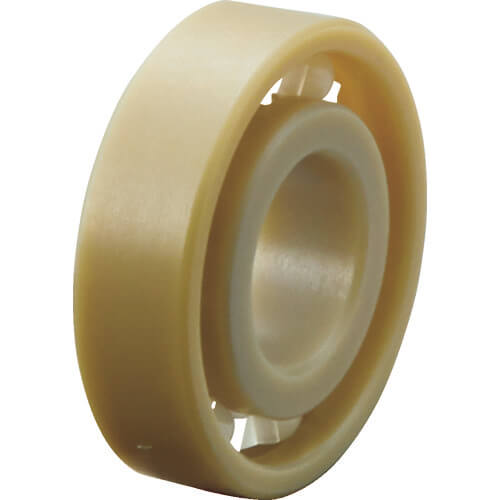

Engineering Plastics Precision Bearing

฿1,132
แบรนด์ TRUSCO
รหัสสินค้า TCP0803
รหัสบาร์โค้ด 4989999932485
รหัสสั่งซื้อ 115-6269
SKU 527082
สต็อก0 (สต็อกในไทย)
15 (สต็อกในญี่ปุ่น)
กำหนดการจัดส่ง
ไม่เกิน 15 ชิ้น : 8 วันทำการ
16 ชิ้นขึ้นไป : โปรดติดต่อเจ้าหน้าที่
วิธีการนำเข้า ทางแอร์
ซัพพลายเออร์ TRUSCO
วันที่อัปเดตราคา 20/06/2026

  • Employs PEEK resin and excellent in self-lubricating, impact resistance, fatigue resistance, heat resistance, wear resistance, and chemical resistance.
  • The dimensional accuracy of the inner and outer diameters is plus or minus0.02mm, and clearances inside the bearing are produced considering expansion and contraction of the resin due to temperature change and dimension change due to fitting with shafts and housings.
  • Usable in conditions of grease-less and lubricant-free.
  • Useful for reducing the size and weight of robots and machinery.
  • The recommended rotation number in the atmosphere is 800rpm or less.
  • Can be used in environments exposed to water and in water.
  • Optimum for use in a clean environment because of grease-less and lubricant-free.
  • ข้อมูลสินค้า
  • Inner Diameter (mm) : 3.0
  • Outer Diameter (mm) : 8
  • W (mm) : 3.0
  • Approximate load (N) : 19.6
  • Working Temperature Range : -20 to 150degreesC
  • วัสดุ
  • Inner and outer ring material : PEEK
  • Retainer material : ETFE/PEEK
  • Ball Material : Stainless Steel (SUS316)
  • น้ำหนัก 0.14 g
    เว็บของซัพพลายเออร์ TRUSCO TCP0803
