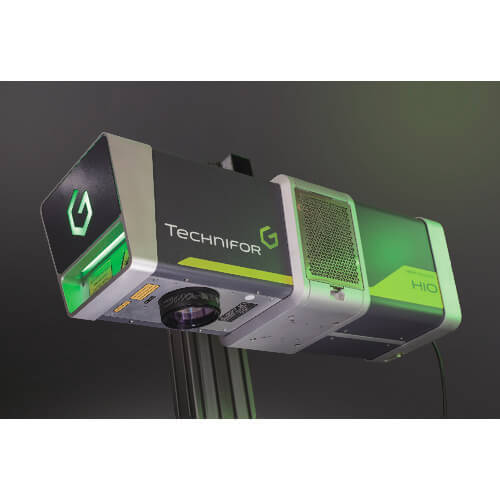

Compact and standalone turn key system enabled all-in-one design for this machine.
Simple installation resolves wiring limitations.
Inline installation is easy, because there is only 1 signal cable that needs to be connected.
Various types of finishing is possible with different output range, including high contrast and clear marking, gentle marking, deep engraving, and shallow engraving.
A wide range of frequency domain enables marking for various uses and in various materials.
High contrast marking on various materials is possible with the maximum peak output within the domain.
High quality beam is effective especially in plastic.
ข้อมูลสินค้า
W x D x H (mm) : 730 x 258 x 230
Max Stamp Dimension (mm) : 205 x 205
Min Stamp Dimension (mm) : 65 x 65
Max Speed : 4000mm/s
Min Beam Diameter : 25micrometre and up
Marking Mode : Fixed marking/movable marking
Marking Area (when 3D module is used) : 65 x 65/110 x 110 (90 x 90)/175 x 175 (140 x 140)/205 x 205mm
Ambient Temperature : 10 to 40degreesC
Electric Power : 500W
Power Cord Length : 1.8m
วัสดุ
Metal
Resin
อุปกรณ์ในกล่อง
Power Cable
Ethernet cable
Controller Software : Lasertrace
น้ำหนัก
19.80 kg
การใช้งาน
For printing, model number printing, and serial number printing.
