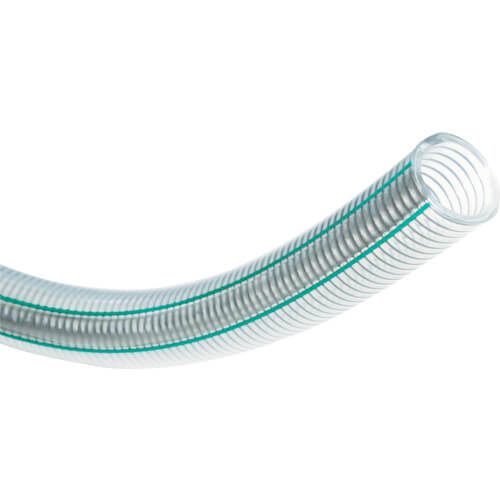

Reinforced with anti-rust SUS316 coils. Strong against kinking and collapsing and fluids are consistently supplied.
Reinforcement with coils makes it optimal for vacuum transportation.
Inner tube is made of tetrafluoride-based fluorine resin. It has excellent chemical resistance and solvent resistance and can be used for a wide range of purposes.
Inner surface has excellent non-adherent and water repellent properties (water-repellent angle is 96degrees). Efficiency in transporting fluids is good and it is hard for fluids to remain, making it easy to clean.
ข้อมูลสินค้า
Length (m) : 20
Inner Diameter x Outer Diameter (mm) : 15 x 22
Working Temperature Range : -20 to 80degreesC
Food Sanitation Law (Notification of the MHLW No. 52 dated 1951 and Notification of the MHLW No. 201 dated 2006 compliant)
FDA DMF Type[[R2]] No. 25486 registered
Color : Naturally transparent
วัสดุ
Principal Materials : Tetrafluoride-based fluorine resin (modified ETFE), polyurethane resin
Reinforcing Material : SUS316
น้ำหนัก
5.50 kg
การใช้งาน
For chemical, cosmetic, food, oil resistant, and heat resistant piping.
TOYOX
