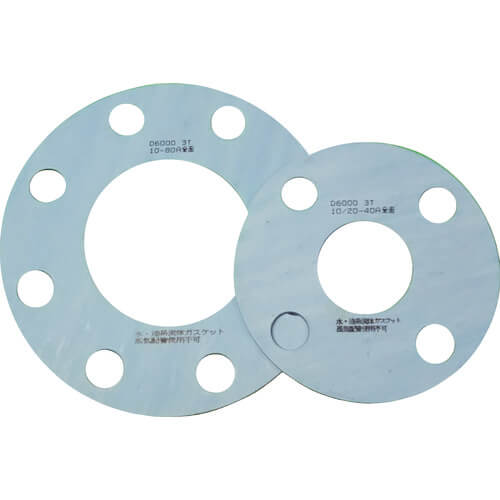

A high quality non-asbestos fiber and synthetic rubber binder with excellent oil resistance are being used in this sheet gasket, and rolled and vulcanized after mixing a small amount of a filler.
Non-asbestos joint sheet widely used in general-purpose pipes for water-based and oil-based fluids.
Publicly certified by the plumbing equipment qualification standard JIS S 3200-7.
ข้อมูลสินค้า
Nominal Diameter (A) : 250
Nominal Diameter (B) : 10
Inner Diameter (mm) : 270
Outer Diameter (mm) : 400
Thickness (mm) : 3.0
Bolt Hole Center Diameter (mm) : 355
Bolt Hole Number : 12
Bolt Hole Diameter (mm) : 25
Working Temperature Range : -100 to 150degrees
วัสดุ
Inorganic fibers
Aramid Fiber
Oil Resistance Synthetic Rubber
น้ำหนัก
350 g
การใช้งาน
Packing of water-based fluids (water, hot water), oil-based fluids (thermal oil, lubricants oil, fuel oil), etc.
