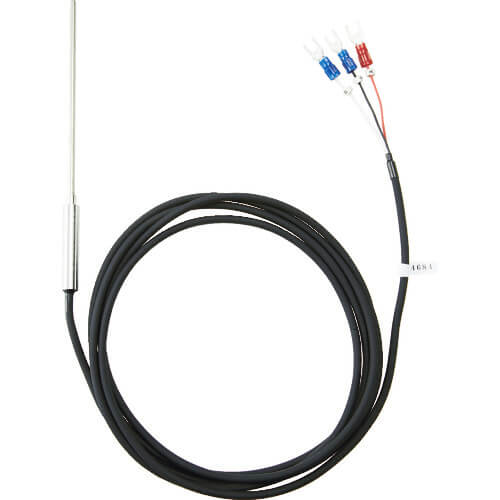

High precision thermal sensor with measuring range up to 200degrees.
Special wires including compensation wire are not required, because a resistor is used for temperature measurement.
Employs 3-wire method in which 2 lead wires are connected to one end of resistor, and 1 lead wire connected to the other end, in order to reduce the effect of lead wire resistance.
ข้อมูลสินค้า
Sheath diameter (mm) : 2.3
Sheath length (mm) : 100
Sleeve diameter (mm) : 8
Normal Operating Temperature Limit (degreesC) : 300
Stainless steel sheath pipe
Lead wire covered with vinyl sheath
Lead wire length : 2000mm
วัสดุ
Lead Wire : VCTF
Sleeve : SUS304
Protection tube type resistance thermometer sensor : Stainless steel (SUS316)
