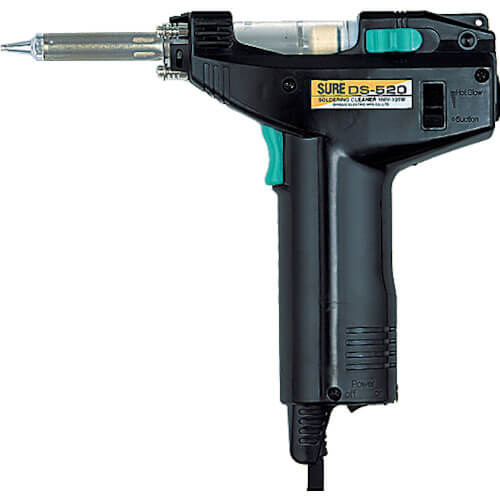

Iron part, iron part temperature control circuit, motor, and diaphragm pump are built inside the gun-type body. Compact desoldering tool also enabling SMD removal.
Carbon containing body ensures electrostatic control, with 3-wire style (earthing)to be sure.
Small but powerful suction power is enabled by directly connecting the suction nozzle and pump.
ข้อมูลสินค้า
Power (V) : AC100
Electricity Consumption (W) : 120
Programmable Temperature (°C) : 350 to 500
W x D x H (mm) : 213 x 42 x 190
Motor output : 12W
Arrival degree of vacuum : 86.5kPa (650mmHg)
Time to reach max pressure : 0.1 second
Displacement (OPEN) : 15L/min
Heater : 100W
Nozzle standard equipment : Hole diameter φ1.0mm
Power cord length : 1.4m
อุปกรณ์ในกล่อง
Desolder pump
Cleaning pin (attached to the main body), filter cartridge x 5 (disposable)
