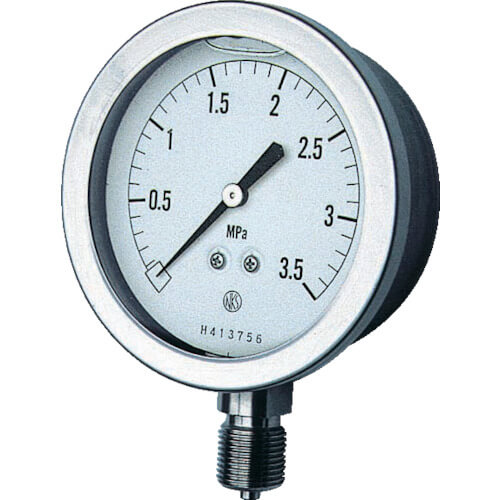

By the Stainless steel made wetted part and material of case, it has excellent corrosion resistance and atmospheric resistance.
This product is exclusively designed to be used under severe vibrating conditions, by immersing the internal mechanism in a filling liquid to restrain the oscillation of moving parts, and to prevent the internal link mechanism from being worn for easy maintenance.
JIS B 7505-1 standard product.
ข้อมูลสินค้า
Pressure Range (MPa) : 0 to 2.5
Min Scale (MPa) : 0.100
Accuracy : ±1.5% FS
Case Shape : A
Size : 75mm
Connection Size : G3/8B
วัสดุ
Bourdon Pipe : Stainless Steel (SUS316)
Stock : Stainless Steel (SUS316)
น้ำหนัก
400 g
คำเตือน
Please confirm the screw size, thread shape (G thread or R thread), Pressure Range (MPa) then place an order.
