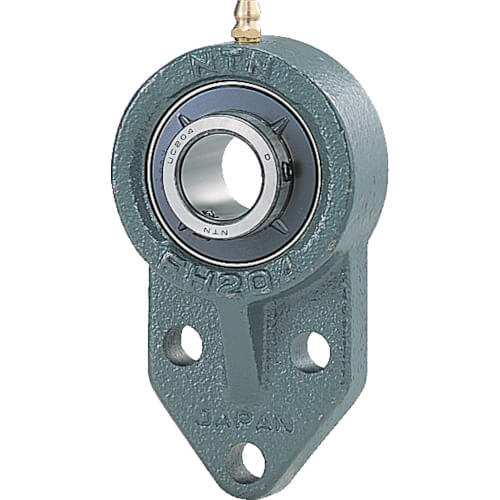

The mounting bolt holes are concentrated on the one side of the bearing housing. It can be used in the same way as the pillow shape unit by mounting it on a side wall of a bed of a device, etc.
ข้อมูลสินค้า
Shaft Diameter (mm) : 20
Total Length (mm) : 62
Total Height (mm) : 110
Mounting Pitch (mm) : 32
Mounting Screw : M8
Oil-lubrication type modified flange shape
Lock Screw Type
Working Temperature Range : -15 to 100°C
วัสดุ
Bearing : High carbon chromium steel bearing
Bearing Housing : Cast Iron
น้ำหนัก
700 g
การใช้งาน
For tension pulleys of pressure rollers, belts, chains, etc. of conveyors.
