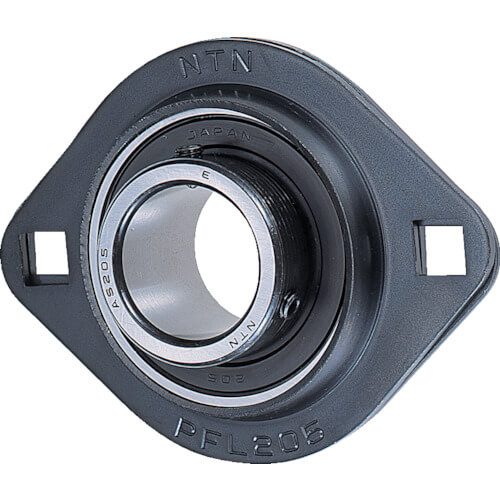

Flanged Units Pressed Steel Housing Set Screw type
฿548
คัดลอกลิงก์แล้ว
แบรนด์
NTN
รหัสสินค้า
ASPFL205
รหัสบาร์โค้ด
4547359007299
รหัสสั่งซื้อ
224-7739
SKU
977084
สต็อก
0 (สต็อกในไทย) 0 (สต็อกในญี่ปุ่น)
กำหนดการจัดส่ง
โปรดติดต่อเจ้าหน้าที่
วิธีการนำเข้า
ทางแอร์
ซัพพลายเออร์
TRUSCO
วันที่อัปเดตราคา
20/06/2026
It has two mounting bolt holes at two bilaterally symmetric positions, and only a small space is required for mounting as with the case of the cast iron type.
The bearing housing is easy to be handled since it is a separable type.
ข้อมูลสินค้า
Shaft Diameter (mm) : 25
Total Length (mm) : 95
Total Height (mm) : 71
Mounting Pitch (mm) : 76.0
Mounting Screw : M8
Steel plate rhombus flanged shape
Lock Screw Type
Working Temperature Range : -15 to 100°C
วัสดุ
Bearing : High carbon chromium steel bearing
Bearing Housing : Steel
น้ำหนัก
300 g
การใช้งาน
For small machines and places with a narrow installation space.
