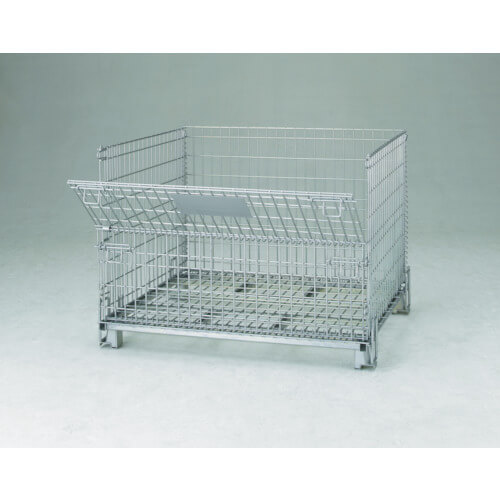

Net Pallet (Pileup Steps)

แบรนด์ TRUSCO
รหัสสินค้า TNK-S5-25
รหัสบาร์โค้ด 4989999016505
รหัสสั่งซื้อ 337-3975
SKU 524038
วิธีการนำเข้า ทางแอร์
ซัพพลายเออร์ TRUSCO

  • By adopting stacking bracket, stacking of pallets after they are folded and retrieving the claws of forklift can be performed smoothly, improving work efficiency and safety.
  • The opening and closing part uses coils, so it can be operated easily.
  • The smaller pitch type of 25 x 25mm is suitable for storing small items and separate parts.
  • ข้อมูลสินค้า
  • Max Load Capacity (kg) : 1000
  • Nominal Dimension (mm) W x D x H : 1000 x 800 x 840
  • Max Inner Dimension (mm) W x D x H : 950 x 760 x 690
  • Fork Clearance (mm) W x D : 870 x 525
  • Leg Part Height (mm) : 100
  • Max Load Number of Stages (stage) : 4
  • Wire Diameter (mm) : 6.3, 3.8
  • Net Pitch (mm) : 25 x 25
  • Gate : Half Open
  • With nameplate (300 x 150mm)
  • วัสดุ
  • Steel
  • Surface treatment : Trivalent chrome plated
  • น้ำหนัก 61.40 kg
    การใช้งาน
  • For various factories, the work site.
  • ประเทศที่ผลิต
    เว็บของซัพพลายเออร์ TRUSCO TNK-S5-25
