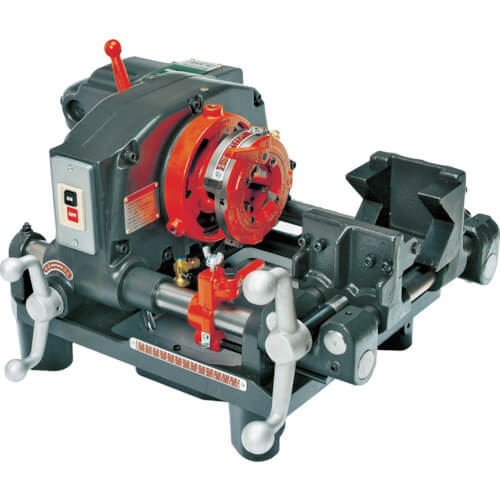

With a specialized machine for conduit whose steady pipe and rotating die head, cutting screw thread of curved pipe can be done easily.
Main shaft rotation speed shifts over a wide range between 18rpm to 110rpm depending on the load to get the optimum rotation.
With 110rpm (when unloaded)at high speed, it can do three times the work of conventional models.
Cutting oil is discharged from the inside of die head and is not scattered.
Screw thread can be cut at an arbitrary length just by setting the lever fixed base to the predetermined location and the die head opens automatically when the cutting is done.
With chip cover to prevent chips from flying apart.
Die head can be easily exchanged to different sizes as it can be removed with one touch.
ข้อมูลสินค้า
Thread cutting capacity (A) : Thick steel PF (1/2 to 3), Thin steel C (15 to 75)
No Load Speed (rpm) : 40110
Electricity Consumption (W) : 750
Attached Standard Die Head : CMDA004, CMDB008
Attached Standard Chaser : PF1/2 to 3/4, 1 to 1 1/2, 2 to 3, C19 to 31, 39 to 51, 63 to 75
