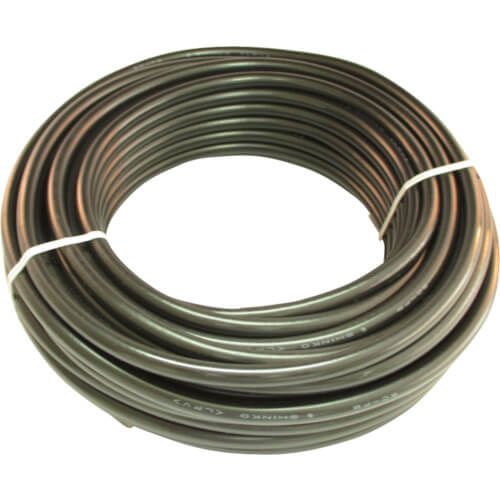

Insulation by polyethylene foam and aluminum laminate tape on both sides make it excellent in transmission performance and noiseproof property.
ข้อมูลสินค้า
Total Length (m) : 20.0
Insulation Resistance : 1000MΩ/km or more
Conductor Resistance : 21.1Ω/km or less
Voltage Resistance (1 min) : AC1000V
Capacitance (1kHz) : 67
Internal conductor outer diameter : 1.05mm
Insulator thickness : 1.98mm
Insulator outer diameter : 5.0mm
Aluminum laminate tape thickness : 0.05mm
Aluminum laminate outer diameter : 5.1mm
Tin-plated annealed copper wire braiding of external conductor : Wire diameter = 0.14mm/Number of wires per carrier x Number of carriers = 4 x 24 or 6 x 16/Pitch = 42mm or less
Sheath thickness : 0.95mm
Sheath finishing outer diameter : approx. 7.7mm
Cable color : Black
น้ำหนัก
1.40 kg
การใช้งาน
For signal transmission between terrestrial broadcasting, satellite broadcasting and BS/CS broadcasting and internal wiring.
SEIWA ELECTRIC MAKER
