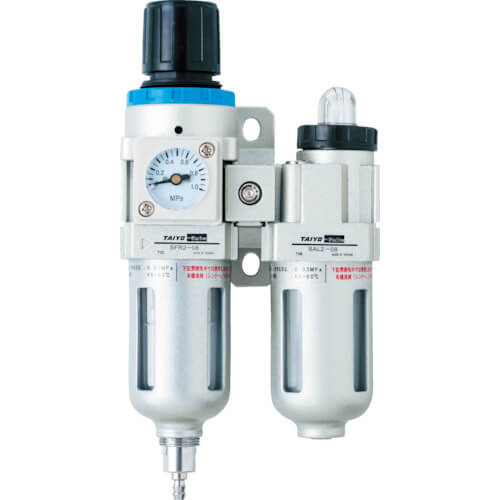

A compact combination of an air filter, regulator, and lubricator that cleans the air, adjusts the pressure, and supplies lubricating oil to pneumatic equipment.
ข้อมูลสินค้า
Filtration Precision (μm) : 5
Working Pressure (MPa) : 0.93
Processing Air Volume ([[M3]]/min) : 0.5
Set Pressure (MPa) : 0.05 to 0.83
Oil Reservoir Capacity ([[CM3]]) : 25
Connection Port Diameter : Rc1/4
Total Length x Total Width (mm) : 174 x 88
Working fluid : Air
Fluid temperature : 5 to 60°C
Drain discharge method : Equipped with manual discharge valve
Working oil : Type 1 turbine oil (ISO VG#32 equivalent)
PARKER
