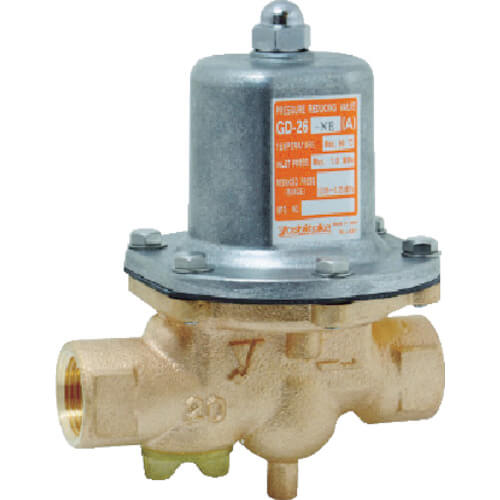

Pressure Reducing Valve(Water)
Pressure Reducing Valve(Water)
฿34,861
คัดลอกลิงก์
คัดลอกลิงก์แล้ว
แบรนด์
YOSHITAKE
รหัสสินค้า
GD-26-NE-A-32A
รหัสบาร์โค้ด
4589946550290
รหัสสั่งซื้อ
431-4841
SKU
1042792
สต็อก 0 (สต็อกในไทย)0 (สต็อกในญี่ปุ่น)กำหนดการจัดส่ง โปรดติดต่อเจ้าหน้าที่
วิธีการนำเข้า
ทางแอร์
ซัพพลายเออร์
TRUSCO
วันที่อัปเดตราคา
20/06/2026
Corrosion resistant material is used on the wetted parts (valve disc FKM, diaphragm/o-ring chlorine resistant EPDM), and has excellent chlorine resistance against tap water. It is a water conformity standard compliant product.
ข้อมูลสินค้า
Nominal Diameter (A) : 32 Nominal Diameter (B) : 1 1/4 Total Length (mm) : 180 Height (mm) : 224.0 Primary pressure : 1.0MPa Secondary pressure : 0.05 to 0.35MPa Max pressure reduction ratio : 10 : 1 Minimum differential pressure : 0.05MPa Connection Method : JIS Rc
วัสดุ
Valve box : Bronze Valve body : Disc FKM Valve washer : Bronze Diaphragm : Chlorine resistant EPDM
น้ำหนัก
4.00 kg
การใช้งาน
Applicable fluid : Cold/hot water
เว็บของซัพพลายเออร์
YOSHITAKE GD-26-NE-A-32A
