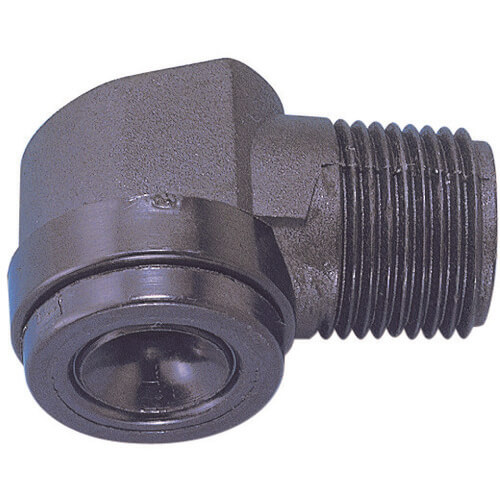

หัวฉีด แบบเต็มวง ชนิดไม่อุดตัน เรซิน PPS เกลียวตัวผู้ 1/4 75°

฿231
แบรนด์ IKEUCHI
รหัสสินค้า 1/4MAJP04PPS
รหัสสั่งซื้อ 434-1741
SKU 823728
สต็อก0 (สต็อกในไทย)
6 (สต็อกในญี่ปุ่น)
กำหนดการจัดส่ง
ไม่เกิน 6 ชิ้น : 8 วันทำการ
7 ชิ้นขึ้นไป : โปรดติดต่อเจ้าหน้าที่
วิธีการนำเข้า ทางแอร์
ซัพพลายเออร์ TRUSCO
วันที่อัปเดตราคา 20/06/2026

  • A filled cone nozzle with a circular spray pattern that distributes in uniform flow rate.
  • Because the nozzle aims to atomize liquid by collision inflow instead of using a swivel, the foreign particle passage diameter is extremely large.
  • Spray at right angles to the inflow direction of the liquid.
  • ข้อมูลสินค้า
  • Spray Angle (°) : 75 (at 0.2MPa)
  • Spray Amount (L/min) : 4.00 (at 0.2MPa)
  • Screw Size : R1/4
  • Dimension (mm) (total length x distance between parallel sides of hexagon) : 32.5 x 16
  • Standard pressure : 0.2MPa
  • วัสดุ
  • Polyphenylene sulfide (PPS)
  • น้ำหนัก 7 g
    การใช้งาน
  • Applications for uses where nozzle clogging is a concern, such as use for circulating water.
  • เว็บของซัพพลายเออร์ IKEUCHI 1/4MAJP04PPS
