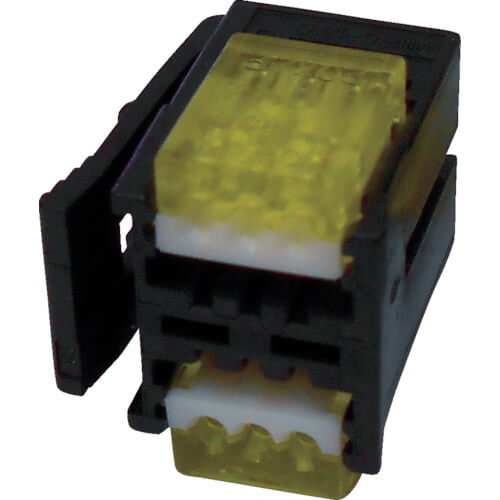

Easy and secure lump pressure welding connector that only needs to be crimped with pliers when the wires are inserted.
Can connect wires without peeling off the wire coating.
It is an industry standard E-CON compliant connector.
The one-touch lock mechanism enables the connector to be attached/detached easily with one hand and maintain a secure fit.
You can visually check the wire insertion through the transparent cover.
ข้อมูลสินค้า
Color : Yellow
Applicable Cable (AWG) : #24-26
Finishing Outer Diameter (mm) : 1.0-1.2
A (mm) : 10.4
B (mm) : 13.2
Rated current : Max. 3A
Working Temperature Range : -20 to 85°C (when 1A is conducting), -20 to 75°C (when 2A is conducting), -20 to 60°C (when 3A is conducting)*No Condensation or Water Droplet
