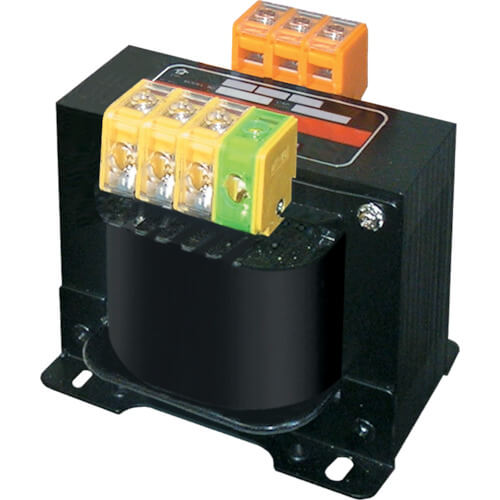

An industrial single phase compound transformer captive terminal block.
With electrostatic shield.
Poor insulation caused by moisture and dust on the paper roll bobbin can be prevented by using a resin molded bobbin.
There are no troubles of removing the protective cover or risk of screws falling off and only have to insert the crimp terminal and tighten for connection, reducing the time to connect the wires by approx. 1/5.
By color coding the terminal block of each phase by input, output and ground, it is easy to tell apart and improves erroneous wiring prevention effect.
Adoption of pop nut enables working with screwdrivers vertically and installation work can be performed quickly and surely.
ข้อมูลสินค้า
Secondary Current (A) : 7.5
Capacity (VA) : 750
W x D x H (mm) : 146 x 150 x 145
Terminal Screw (mm) : 4
Insulation Type : E Type
Compliant with JIS Standard
Primary Voltage : 440-400-380-0V
Secondary Voltage : 110-100-0-EV
วัสดุ
Copper
Iron
Resin
น้ำหนัก
9.20 kg
การใช้งาน
Convert input side voltage to output side voltage.
