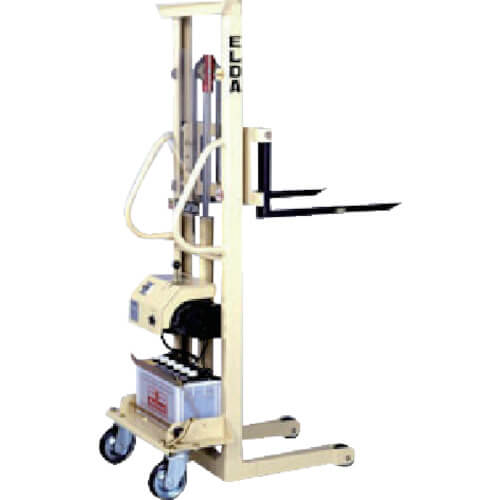

Lifting the fork can be completed by pressing the vertical operation lever only. Lowering the fork is started by pulling the lever toward the front, and the lowering speed is adjustable.
ข้อมูลสินค้า
Equal Load (kg) : 350
Load Center Distance (mm) : 300
Fork Dimension (mm) W x L : 60 x 600
Fork Dimension (mm) Slide Outer Width : 140 to 620
Total Height (mm) : 1825
Fork Height (mm) : 90 to 1500
When load : 10
Rise Time (sec) At full load : 14
Manual traveling type
Lift system : battery driven hydraulic type (turbine oil : ISO-VG32 or equivalent)
Charger power supply : battery (120E41R, 12V)
Charger for 100V input is attached (separate type)
Charging Time : Approx. 10 hours
Front wheel : fixed caster x 2, Rear wheels : swivel caster (with stopper)x 2
น้ำหนัก
140.00 kg
การใช้งาน
For installation/removal of dies, and transportation of pallets, etc.
KANTOH
