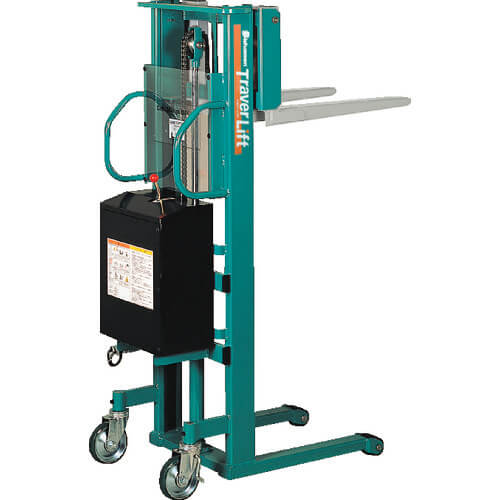

Lifting and lowering with lever operation is one touch. The ascending and descending speed is an adjustable type according to the square angle at which the lever is knocked down.
ข้อมูลสินค้า
Equal Load (kg) : 380
Load Center Distance (mm) : 300
Fork Dimension (mm) W x L : 110 x 600
Fork Dimension (mm) Slide Outer Width : 232 to 558
Total Height (mm) : 1666
Fork Height (mm) : 90 to 1290
When load : -
Rise Time (sec) At full load : 16
Manual traveling type
Lift System : Hydraulic Battery Type (turbine oil : ISO-VG32 used)
Charger Power Supply : Single Phase 100V (cord length : 2.5m)
Charging Time : Approx. 7 hours
Front wheels : urethane fixed caster x 2, Rear wheels : urethane swivel caster x 1, and urethane swivel caster with stopper x 1
