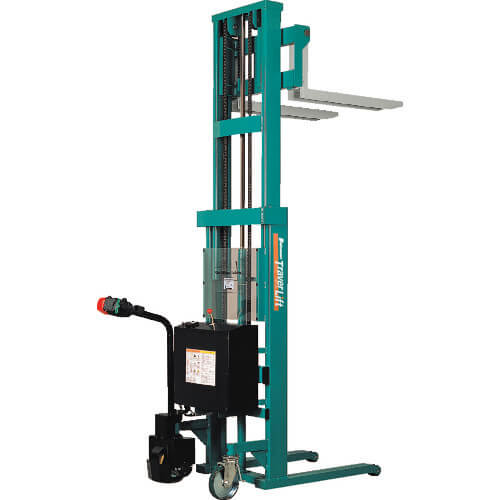

Highly durability electric wheel with a small turning angle.
Lifting and lowering with lever operation is one touch. The ascending and descending speed is an adjustable type according to the square angle at which the lever is knocked down.
It can be carried easily by battery running.
Heavy luggage loads can also be easily moved.
ข้อมูลสินค้า
Equal Load (kg) : 650
Load Center Distance (mm) : 400
Fork Dimension (mm) W x L : 125 x 800
Fork Dimension (mm) Slide Outer Width : 262 to 726
Total Height (mm) : 2949
Fork Height (mm) : 90 to 2510
When load : -
Rise Time (sec) At full load : 30
Motor driven transport
Lift System : Hydraulic Battery Type (turbine oil : ISO-VG32 used)
Charger Power Supply : Single Phase 100V (cord length : 2.5m)
Charging Time : Approx. 7 hours
Front wheels : urethane fixed caster x 2, Rear wheels : urethane swivel caster x 1, and urethane swivel caster with stopper x 1
น้ำหนัก
374.00 kg
การใช้งาน
As a transporting lift dolly (high stroke)of various factory, such as logistics centers, warehouse, etc.
BISHAMON
