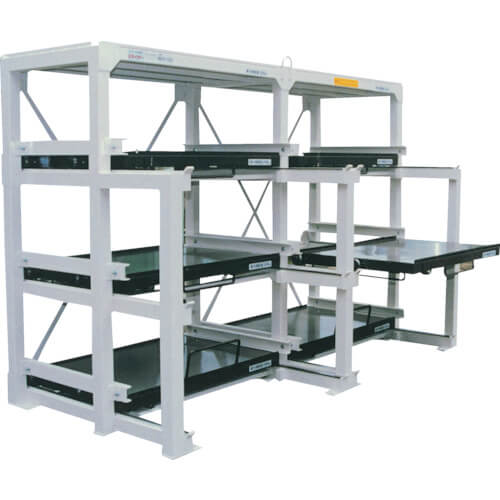

Three-dimensional storage such as molding die and jigs can be performed, effective for space saving and work environment improvement.
1 shelf has withstand load of 2t, and it is high rigidity and light operability (approx. 13kg for initial motion).
Since the front overhanging frame is effective for toppling prevention, it is safe.
Since it is a full stroke type in which the sliding shelf can be pulled out to the rearmost part, it can easily suspend the work of the rear part as it is even the products placed in the front and back.
ข้อมูลสินค้า
Equal Load Capacity (t/stage) : 2
W x D x H (mm) : 2865 x 1275 x 1891
Fixed Shelf : 2 Stages
Number of Shelf Stages Sliding Shelf : 6 Stages
Fixed Shelf : 1410 x 800
Shelf Dimension (mm) Sliding Shelf : 1200 x 800
Main Body Specification : 2 continuous type
Stroke (mm) : 800
Max Load Weight (t/piece) : 16
Finished Goods
วัสดุ
Steel (SS400)
น้ำหนัก
847.00 kg
การใช้งาน
Storage of molding die and jigs.
Storage of roll products.
Storage of steel plates.
Storage of other heavy products.
คำเตือน
Please draw out the one stage at a time Drawing two stages at the same time is strictly prohibited.
Notation size is outside dimension of the main body.
