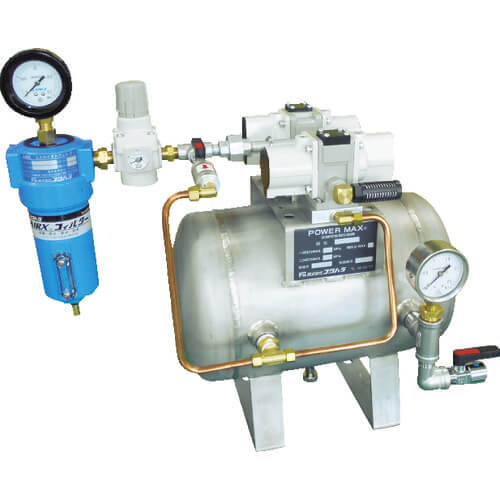

Only by piping an inlet and outlet, it increases pressure of low pressure air and makes high pressure air.
ข้อมูลสินค้า
Max. pressure on the inlet side (MPa) : 0.5
Max. pressure on the outlet side (MPa) : 2.0
Pressure increase ratio : 4x
Max Usage Flow Rate ([[M3]]/min) : 0.1
W x D x H (mm) : 464 x 316 x 500
Tank capacity : 10L
Connection port diameter (IN) : Rc1/2
Connection port diameter (OUT) : Rc1/2
วัสดุ
Tank : Stainless Steel (SUS304)
อุปกรณ์ในกล่อง
Pressure reducing valve
น้ำหนัก
16.00 kg
การใช้งาน
For a place where high pressure is necessary only for a part of the factory line. (factories that whole pressure of a factory is decreased due to an air tightness test, laser processing, air blowing, energy saving)
