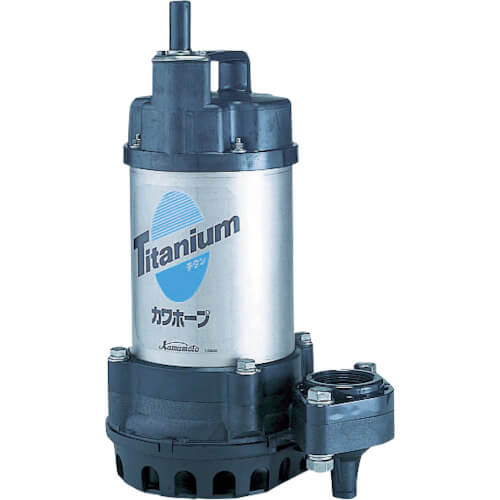

Titanium is employed for the metal part of the wetted part and resin for the pump part. It is resistant to corrosion, lightweight and easy to handle.
For resin parts requiring strength such as the impeller and the casing, reinforced resin containing glass fiber is used.
Since the pump is a vortex type and a one-side open type impeller that is less likely to be clogged with foreign objects is employed, it is excellent in foreign object passing performance.
The double shaft seal prevents inundation into the motor.
ข้อมูลสินค้า
Discharge Rate (L/min) : 20
Total Head (m) : 7.0
Frequency (Hz) : 60
Caliber (mm) : 32
Power (V) : Three Phase 200
Current (A) : 1.2
Output (kW) : 0.15
Non automatic operation type
Power Cord Length : 6m
Liquid quality : Sea water/Sludge water (PH5 to 9)0 to 40°C
Max water depth for pump : 5m
Different voltages available (negotiable)
น้ำหนัก
5.00 kg
การใช้งาน
For sea water.
For culture farms and processing plants of fishes and shellfishes and various miscellaneous wastewater
KAWAMOTO
