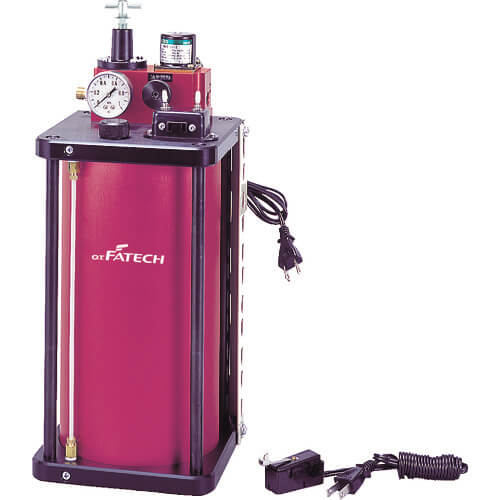

It is an automatic mist lubricator that performs oiling/cooling of molding die, various blades, and removal of chips at once by spraying oil in the form of mist using air pressure.
ข้อมูลสินค้า
Tank Capacity (L) : 4
Main Body Dimension (mm)W x D x H : 170 x 170 x 435
Power (V) : DC24
Working Pressure : Up to 1MPa
วัสดุ
Aluminum
อุปกรณ์ในกล่อง
Limit switch : 1 piece
Limit switch mounting plate : 1 set
Funnel : 1 piece
Hose Joint : 1 Piece
น้ำหนัก
7.30 kg
การใช้งาน
Automatic oiling of drilling, tapping, and reamer processing, cooling of blades, removal of chips, etc. adhered to edged tools and cutting bases.
Oiling and cooling of press dies, die sets, punch tables, etc. and automatic blowing out of workpieces.
คำเตือน
Please be sure to specify the voltage when ordering.
When connecting the power supply, be sure to check the voltage (100 or 200V).
Do not trash garbage when refilling oil.
Very high viscosity oils, hazardous materials, volatile oils including organic solvents, chemicals (acidic, alkaline), water etc. can not be used.
For regulator protection, be sure to install the air filter.
