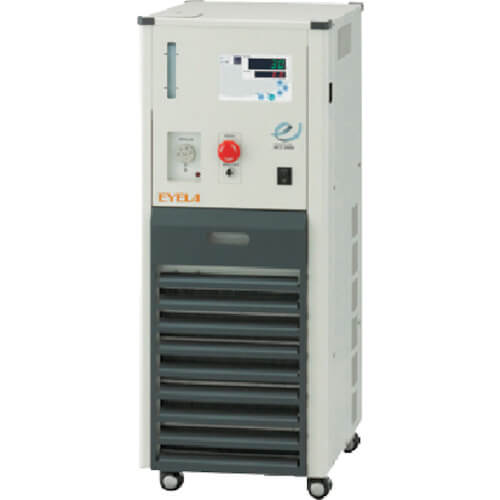

Eco type low temperature circulator with an inverter system.
High-precision temperature control with the heater and refrigerator that circulates liquid from -10 to 80°C.
ข้อมูลสินค้า
W x D x H (mm) : 340 x 452 x 850
Temperature Control Range (°C) : -10 to 80
Cooling capacity (W) (50Hz/at 10°C) : 1240
Max. flow rate (L/min) (50/60Hz) : 23.0
Power (V) : Single Phase 200
Built-in air-cooled refrigerator
Temperature control precision : ±0.1°C to 0.2°C
Max lifting height for A and C types (50Hz) : 10.4m
B and D have high-pressure pump specifications and the max lifting height (50Hz)is 20m
C and D types can be used to circulate pure water
Working Environment Temperature Range : 5 to 35°C
น้ำหนัก
55.00 kg
การใช้งาน
For temperature management of light source of electron microscope and spectrophotometer, wrapping device (semiconductor manufacturing equipment), exposure equipment and reaction tank, etc.
