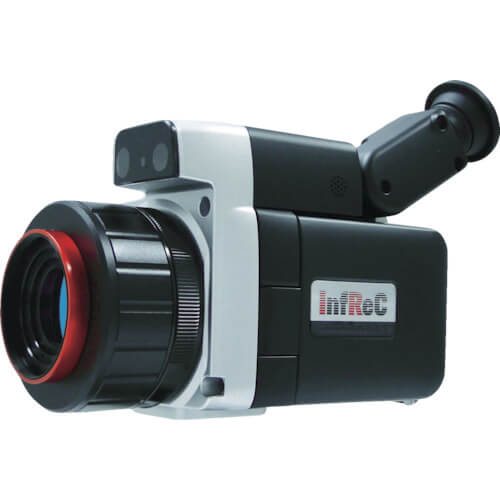

This high resolution model is beyond class and is equipped with multiple superresolution processing that can amplify the number of pixels by 4 times.
Equipped with a 300 million pixel visual camera, enabling simultaneous recording, synthetic display with thermal images, and linear display.
Equipped with movable liquid crystal monitor and view finder, full auto function, remote control, etc. It demonstrates excellent operability also outdoors.
Equipped with various recording functions, including superresolution mode, quick panorama mode, SD movie mode, interval mode, alarm recording, and external trigger recording.
ข้อมูลสินค้า
Measuring Temperature Range (°C) : -40 to 500
Temperature Min Display (°C) : 0.030
Measurement Visual Field Angle (°) : 22 x 17
Spatial Resolution (mrad) : 0.8 (SR mode)
Power supply : AC adapter (AC100 to 220V), exclusive battery pack
W x D x H : Approx.105 x 193 x 121mm (excluding protruding part)
Number of detector pixels : 320 x 240
Number of recorded pixels : 640 x 480 maximum (SR mode)
Frame rate : 60Hz
Recording speed : Up to 60Hz (with USB connection)
Container Protection Class : IP54
น้ำหนัก
1.30 kg
การใช้งาน
For the maintenance of power equipment, machinery, and refractory materials.
AVIO (NIPPON AVIONICS)
