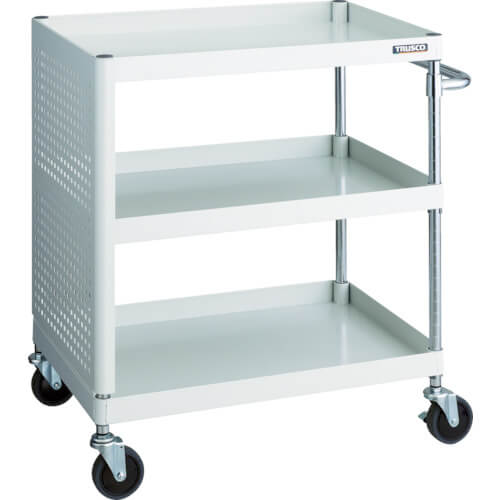

A dedicated hook can be installed using a hole at a 25mm angle, and it is optimum for storing tool, etc.
The side with the punching hole can be used effectively.
ข้อมูลสินค้า
Max Load Capacity (kg/piece) : 150
Equal Load Capacity (kg/stage) : 100
Color : White
W x D x H (mm) : 750 x 500 x 880
Number of Stages (stage) : 3
Strut Diameter (mm) : 25.4
Caster : Flexible Type 100mm (2 pieces), Flexible Type (with stopper)100mm (2 pieces)
Shelf Board Adjustable Pitch : 25mm
Fall Prevention Height : 50mm
Panel Height : 550mm
วัสดุ
Main Body : Steel (antibacterial powder coating)
Wheel : Elastomer (silent type)
Caster Bracket : Steel
น้ำหนัก
21.80 kg
คำเตือน
When installing a small panel, please open the effective dimension from the top board to the second stage by 150mm or more.
The large panel can be installed only on PEW-9□ □ series (including economical type, rack type, soft color).
Since both upper and lower panels are hooked to a plate-shaped shelf board, you cannot use it when the top board or drawer is at the top.
Drawers cannot be installed just under the panel mounting shelf board. (Small panel : because mounting bracket interferes; large panel : because bushing interferes)
When installing a large panel, it is not possible to attach a drawer to the bottom row.
