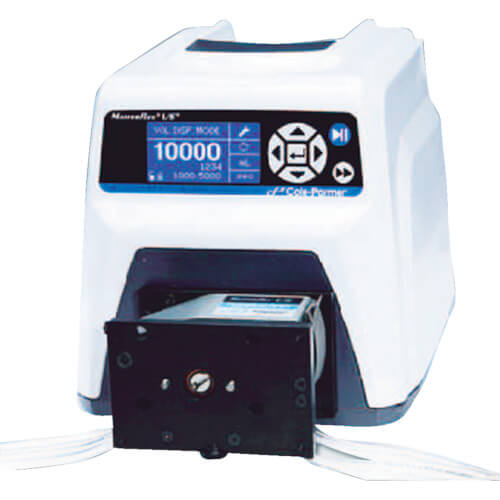

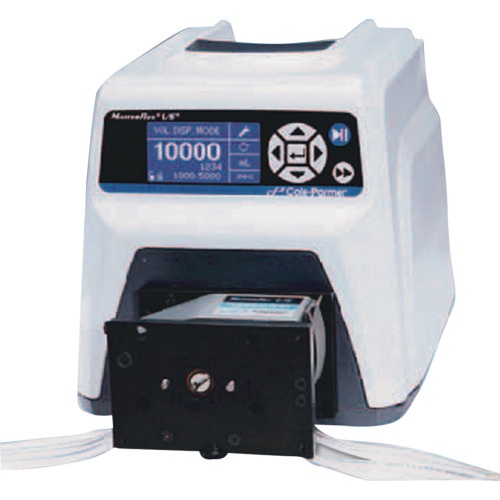

By combining tube, pump head and pump (motor drive unit), it can be used as a liquid feeding pump.
Tubing pump that can easily control the flow of liquid, gas and slurry substances.
Tubes made of different materials and diameter can be changed accordingly and used for a variety of purposes by combining with the pump head and operation part.
Structured such that only the tube is in contact with the sample and the piston, valve, etc., do not touch the sample directly, so solvent and corrosive materials can be handled safely.
7528 : Digital rotational display type.
07522 : Maintenance-free and high-precision motor type.
ข้อมูลสินค้า
W x D x H (mm) : 254 x 216 x 216
Feed rate (ml/min) : 0.001 to 566
Rotation Speed (rpm) : 0.02 to 100
Motor (W) : DC75
Power (V) : Single Phase 100
น้ำหนัก
5.90 kg
การใช้งาน
For feeding liquid to chemical products, medical products, cosmetics, agriculture, herbicide and nutrients.
YAMATO SANGYO
