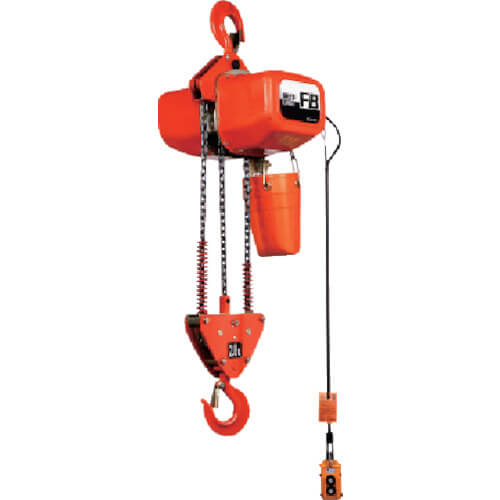

FB type Electric Chain Hoist

แบรนด์ ELEPHANT CHAIN BLOCK
รหัสสินค้า F6-02860
รหัสสั่งซื้อ 773-8137
SKU 811735
วิธีการนำเข้า ทางแอร์
ซัพพลายเออร์ TRUSCO

  • The low speed has been configured as a slow speed which is 1/6 of the speed for high speed (standard speed).
  • Combining this with an electric overhead traveling crane creates 6 points of motion (up/down, left/right, forward/backward)and enables free operation at your hand.
  • Please inform us upon placing your order when using a special steel I-beam.
  • A type equipped with an overload prevention feature (torque converter)is also separately available.
  • ข้อมูลสินค้า
  • Rated Load (t) : 2.8
  • Standard Lift (m) : 6
  • 50Hz : 2.1-0.3
  • Hoisting speed (m/min)60Hz : 2.5-0.4
  • Min Distance Between Hooks (mm) : 840
  • Time Rating (min) : 30
  • Power supply : Three phase 200V
  • Power cord : 5m
  • 2-speed type
  • Operation voltage : 24V
  • 2-point push button type
  • วัสดุ
  • Load Chain : Special Alloy Steel
  • น้ำหนัก 91.00 kg
    เว็บของซัพพลายเออร์ ELEPHANT CHAIN BLOCK F6-02860
