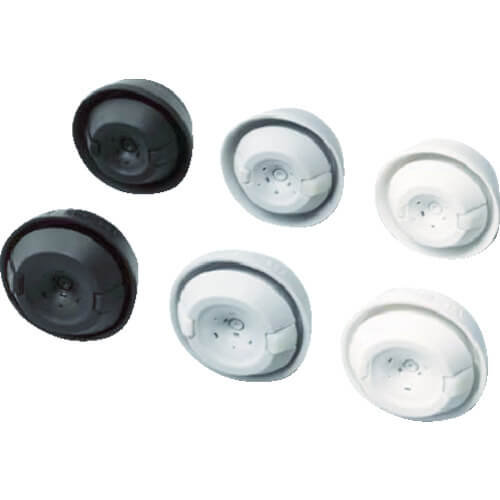

Since it can be attached just by lightly pushing it into a hole, the attachment time can be significantly reduced as compared to cable glands.
With a strain relief function with which strain is less likely to be put on the wiring connection part even if the cable is pulled from outside the equipment.
Easy-to-attach and difficult-to-remove structure.
ข้อมูลสินค้า
Color : White
Height (mm) : 17 to 20
H2 (mm) : 5.5
D1 (mm) : 4
Width (mm) : 29.3 to 34.5
Mounting hole Dimension (mm) : 20.5
Compatible cable diameter (mm) : φ7 to 11
Working temperature : -20 to 125°C
Strain relief function : (EN50262 : 1998ver.A compatible)
SUGATSUNE
