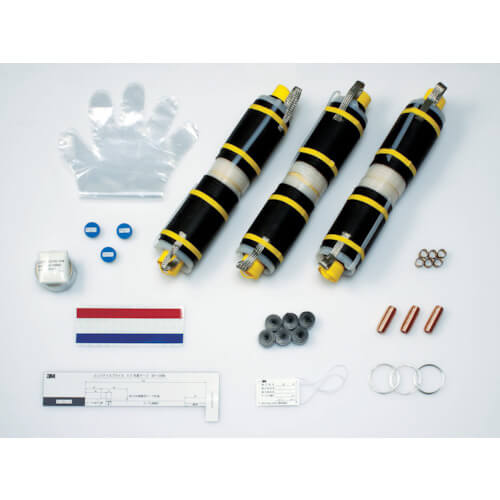

Straight splicing material for 6600V CVT, EM-CET cables.
Can also be used at places where submergence and flooding are assumed.
Cold shrink type high voltage cable connection method based on the concept of the unique all-in-one structure of 3M[[TMU]].
Through complete omission and compactification of the tape winding process which are possible only by the cold shrink method, further reduction in the construction time and ease of work at a narrow place have been realized.
By integrating members to be inserted through the cable together into one member (all-in-one structure)and incorporating putty which enables omission of the waterproof tape winding process, the work is easy to understand and the working hours have been cut approximately in half as compared with conventional products.
It is safe because it does not require fire and heat sources.
Energization becomes possible immediately after construction.
Can also be used for eco cable (EM cable).
Registered construction method of NETIS (new technology information system)of Ministry of Land, Infrastructure, Transport and Tourism.
ข้อมูลสินค้า
Applicable cable conductor size ([[MM2]]) : 600
Finishing outer diameter of connection (mm) : 170
Finishing length of connection (mm) : 635
Die diagonal dimension : 47
JCAA305 performance standard compliant product
Splicing material for 6.6kV CVT and CET cables (cold shrink method)
Applicable connector : Compression
วัสดุ
Insulation cylinder main body : Silicone, EPDM, butyl rubber
3M
