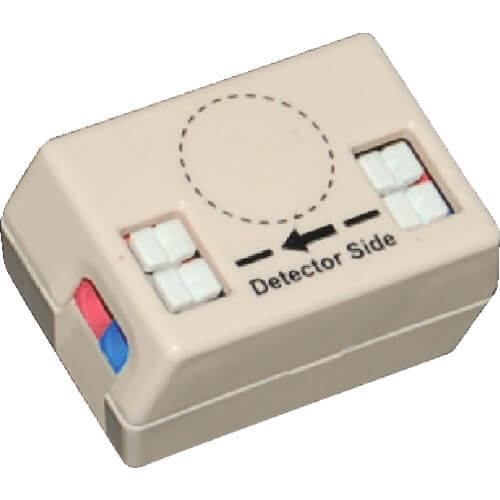

Configured of a parent device (WR-MPF), multiple child devices (WR-CPF), a sensor, stickers, and a termination kit.
It is easy to identify the position at which the water leakage was detected. (digital display of the child device number (water leakage detection position)on the parent device)
Capable of simultaneously detecting 2 or more water leakage positions.
The detection sensitivity can be adjusted to 3 levels.
With error alarm function for sensor disconnections and child device errors (digital display of error position)
Even if it gets wet with water, can be easily recovered simply by wiping with dry waste cloth etc.
ข้อมูลสินค้า
Working Temperature Range (°C) : -15 to 45
Power supply : AC100V (50/60Hz) (WR-MPF), DC12V (supplied from parent device) (WR-CPF)
Width x depth x height : 200 x 90 x 200mm (parent device)
Water leakage output : no voltage a contact, c contact
Water leakage detection position : binary output
Sensor disconnection output : no voltage a contact
น้ำหนัก
16 g
การใช้งาน
Data centers, etc. (places that require emergency response in the event of a water leakage)
