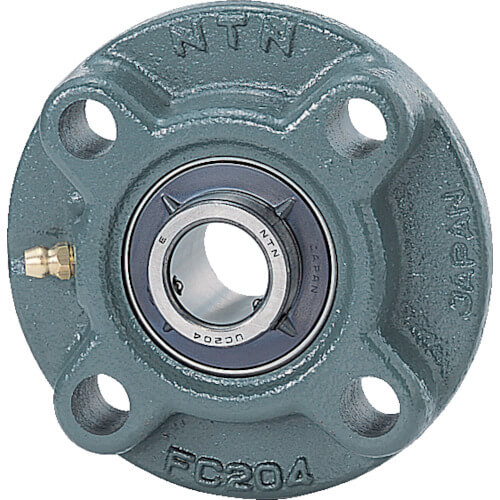

Flanged Cartridge Unit Cast Housing Set Screw type

฿2,437
แบรนด์ NTN
รหัสสินค้า UCFCX10D1
รหัสบาร์โค้ด 4547359212921
รหัสสั่งซื้อ 819-7128
SKU 977817
สต็อก0 (สต็อกในไทย)
0 (สต็อกในญี่ปุ่น)
กำหนดการจัดส่งโปรดติดต่อเจ้าหน้าที่
วิธีการนำเข้า ทางแอร์
ซัพพลายเออร์ TRUSCO
วันที่อัปเดตราคา 20/06/2026

  • A cylindrical spigot joint is installed on the mounting surface of the bearing housing and it is fit into the frame. It has little eccentricity when being mounted and the positioning is also correct.
  • ข้อมูลสินค้า
  • Shaft Diameter (mm) : 50
  • Total Length (mm) : 162
  • Total Height (mm) : 162
  • Mounting Pitch (mm) : 136.0
  • Mounting Screw : M12
  • Oil-lubrication type round flanged shape with spigot joint
  • Lock Screw Type
  • Working Temperature Range : -15 to 100°C
  • วัสดุ
  • Bearing : High carbon chromium steel bearing
  • Bearing Housing : Cast Iron
  • น้ำหนัก 3.20 kg
    การใช้งาน
  • For drum pulleys, etc.
  • เว็บของซัพพลายเออร์ NTN UCFCX10D1
