Flanged Unit Cast Housing Set Screw type
Flanged Unit Cast Housing Set Screw type
฿1,644
คัดลอกลิงก์
คัดลอกลิงก์แล้ว
แบรนด์
NTN
รหัสสินค้า
UCF306D1
รหัสบาร์โค้ด
4547359001310
รหัสสั่งซื้อ
819-7152
SKU
977784
สต็อก 0 (สต็อกในไทย)0 (สต็อกในญี่ปุ่น)กำหนดการจัดส่ง โปรดติดต่อเจ้าหน้าที่
วิธีการนำเข้า
ทางแอร์
ซัพพลายเออร์
TRUSCO
วันที่อัปเดตราคา
20/06/2026

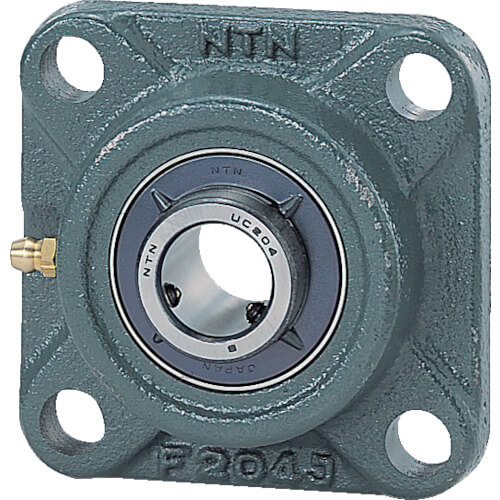

The shape of the bearing housing is square and it is designed to be attached such as to the side wall of the machine by 4 bolts, also the structure around the bearing is simple and easy to install, so it is most widely used in the flange type.
ข้อมูลสินค้า
Shaft Diameter (mm) : 30 Total Length (mm) : 125 Total Height (mm) : 125 Mounting Pitch (mm) : 95 Mounting Screw : M14 Oil-lubrication type square flanged shape Lock Screw Type Working Temperature Range : -15 to 100°C
วัสดุ
Bearing : High carbon chromium steel bearing Bearing Housing : Cast Iron
น้ำหนัก
1.60 kg
การใช้งาน
For transmission devices and general machinery.
เว็บของซัพพลายเออร์
NTN UCF306D1
