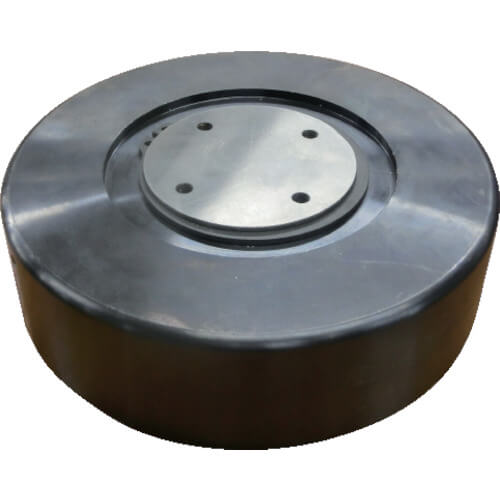

By supporting the transfer surface with several balls, it can support larger load while saving space. Heavy load can be rotated in place, or moved finely and accurately in any direction such as forwards, backwards, to the left, to the right and diagonally.
ข้อมูลสินค้า
Allowable Weight (kg) : 5000
Diameter x H (mm) : 220 x 65
วัสดุ
Steel
น้ำหนัก
15.50 kg
การใช้งาน
For conveying and positioning heavy loads such as jigs and molds.
คำเตือน
The transfer surface needs to be as flat as possible with great hardness.
Please be careful not to exceed the withstanding load and keep the offset load in mind.
