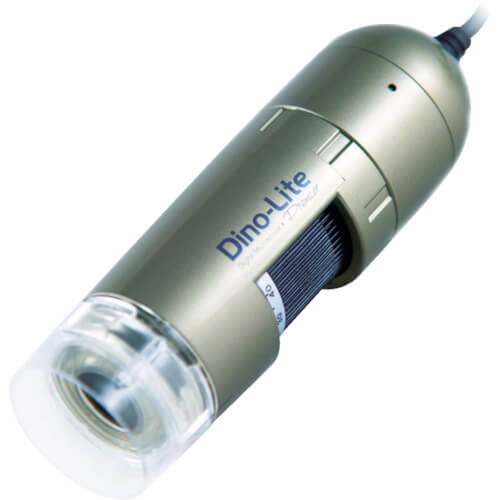

A full spec model consisting of a newly designed body equipped with all functions including tip removal and polarization.
When this electron microscope is in close contact with the object, it focuses at about 55x and 200x. Maximum magnification of 230x is possible.
A 1.3 million pixel model with a measuring function and calibration.
ข้อมูลสินค้า
Magnification (times) : About 10 to 230
W x H (mm) : 32 x 104
Power Supply : USB bus power
Resolution : 1280 x 1024px, about 1.3 million pixel
PC USB connection
Compatible OS : Windows XP/Vista/7/8/10, Mac OSX 10.5 or Higher
Functions : Polarization, white LED x 8, removal of the tip part, magnification dial lock, shutter button, measurement, calibration, software
วัสดุ
Plastic
อุปกรณ์ในกล่อง
Software CD-ROM
Calibration sheet
Storage Bag
น้ำหนัก
102 g
การใช้งาน
Metal processing, various research organizations, cutlery, drill and other inspections, auto parts, bearing, optic fiber, checking of various circuit boards, printed matters, fiber material inspection, animal and plant inspection, genetic research, etc.
