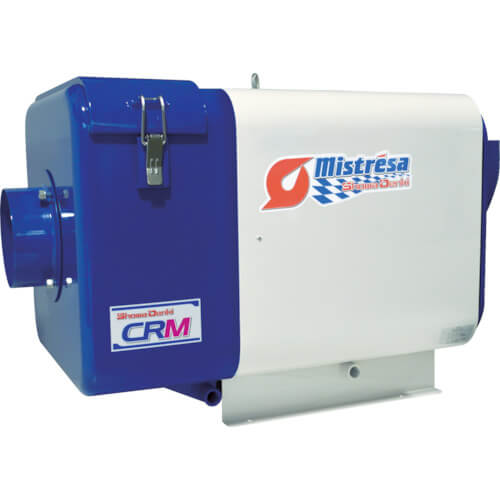

Multi-series in which the mist collection method can be selected according to the customer’s specifications.
The collection method can be changed easily according to the usage environment after purchase.
ข้อมูลสินค้า
Power (V) : Three Phase 200
Output (kW) : 0.40
Air Volume ([[M3]]/min) (50/60Hz) : 4.4/5.2
Frequency (Hz) : 50/60
Main Body Dimension (mm)W x D x H : 387 x 684 x 435
Mounting Dimension (mm) : 200 x 180
Inlet Diameter (mm) : 98
Standard Electric Consumption Rate : 5.40 yen/h
50/60Hz dual purpose
Collection efficiency : 98.4%
Removal method : Demister/taper tube
วัสดุ
Iron (SPHC)
น้ำหนัก
32.00 kg
การใช้งาน
NC lathe, general purpose lathe, milling machines, machining center, electrical discharge machines, die cast machines, and other machines that generate mist.
SHOWA DENKI
