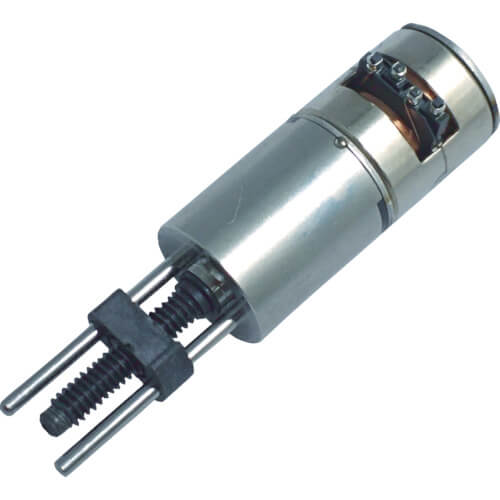

Ultra-small-sized micro linear actuator combining a plastic micro gear reducer and a stepping motor.
ข้อมูลสินค้า
Outer Diameter (mm) : Φ8
Length (mm) : 31.5
Max Stroke (mm) : 7
Rated voltage (v) : 5
Resolution (μm) : 2.50
Motor (two phase stepping motor)
วัสดุ
Stainless steel, resin
อุปกรณ์ในกล่อง
Cable
Circuit board
Product catalog
Standard nut
น้ำหนัก
4 g
การใช้งาน
Liquid control of joints of microrobots, micropumps, pulp, etc.
For small-sized products such as manipulators. (patented)
คำเตือน
Please note that there is a risk that the motor part may become high temperature when it is operated continuously for a long time and the coil may be damaged depending on the driving condition.
