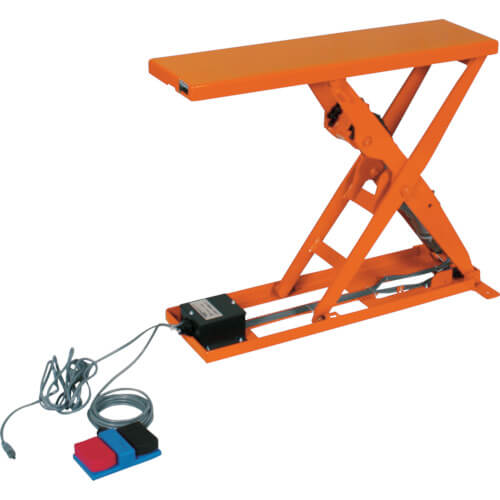

Built-in power unit in the main unit, there is no restriction on the installation location.
Oil does not come out.
High output brushless motor is built in.
Since the loading system is that the dolly crosses the lift, optimum for using as a lifting machine such as a hand-truck, a flat dolly, a route van or the like.
The anchor base is provided in the chassis, and construction is easy.
ข้อมูลสินค้า
Equal Load (kg) : 100
Table Dimension (mm) W x L : 300 x 800
Table Height (mm) : 110 to 620
50Hz : 22/22
Rise/Fall Time (sec) 60Hz : 22/22
Motor Output (kW) : 0.07
Lift System : Electric Ball Screw Type
Power supply : Single Phase 100V
Power Cord Length : 3m
Operation Method : Foot Switch (cord length : 2m)
Unit : Built-in Type
Max. frequency of use : 30 times/h (for HLEB-20, 15 times/h)
น้ำหนัก
64.00 kg
การใช้งาน
Assembly.
Part sorting work.
คำเตือน
Exceeding the max. use frequency may cause failures.
TRUSCO
