VESSEL

HFS1-300-1DR

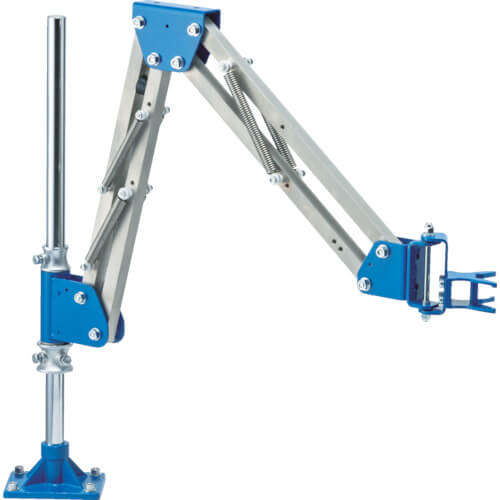

Hand Free Tool Arm

มีค่าขนส่ง เลิกผลิต
แบรนด์ VESSEL
รหัสสินค้า HFS1-300-1DR
รหัสบาร์โค้ด 4907587315205
รหัสสั่งซื้อ 109-8970
ซัพพลายเออร์ TRUSCO
  • Arm has a wide movable range and a high degree of freedom.
  • Spring has a tool balancing effect that reduces weight load.
  • Reduces gripping force and physical force fatigue caused by the weight of power tool.
  • Vertical movement of the arm enables screw tightening in a straight manner, reducing driving failure.
  • Uniform tightening movements are possible to reduce variability.
ข้อมูลสินค้า
  • Maximum reaction force (N,m) : 4.5 (M5)
  • Compatible Model : Up to 4.5N,m for VE-3000, VE-4000 line, VE-5000 line, and VE-6000 line
  • Maximum Load : 0.8 to 1.2kg
  • Tool Compatible Outer Diameter : phi35 to 45mm
  • Tapping screws can be used
  • Horizontal Movable Range : R450 to 700mm
  • Mounting Fixture Outline : 80 x 100mm
  • Mounting Screw : M6
อุปกรณ์ในกล่อง
  • Replacement kit, rubber sheet, hose band
น้ำหนัก 4.1kg
ประเทศที่ผลิต Japan
ข้อมูลจากผู้ผลิต VESSEL HFS1-300-1DR (ลิงค์นี้จะพาคุณไปสู่เว็บไซต์ภาษาญี่ปุ่น)
