PISCO

NSBVF10-04

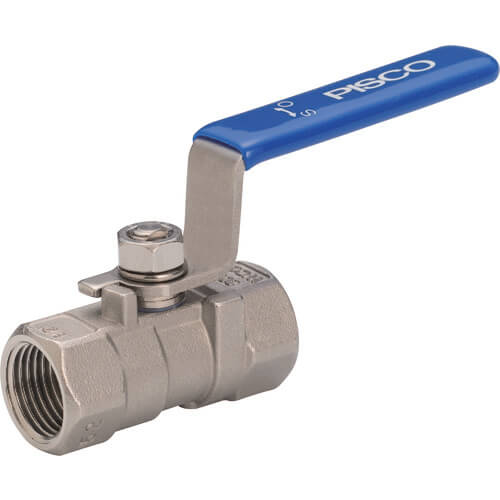

Stainless Ball Valve 1 Piece type

฿1,178
฿1,414
แบรนด์ PISCO
รหัสสินค้า NSBVF10-04
รหัสสั่งซื้อ 114-4896
สต็อกในไทย 0
สต็อกในญี่ปุ่น 8
กำหนดการจัดส่ง 8 วันทำการ
วิธีการนำเข้า ทางแอร์
ซัพพลายเออร์ TRUSCO TH TRUSCO JP
  • Material equivalent to SUS316 (SUS316 or CF8M)is used at the wetted part.
  • The stem of the fixed handle does not come off in this structure.
  • Either side can be used for attaching input or output flow.
ข้อมูลสินค้า
  • Connection Port Diameter : Rc1/2
  • Height (mm) : 55.3
  • Working Fluid : Air, nitrogen, helium, and other inert gases (not containing toxins), water, fluid (under certain conditions), other (under certain conditions)
  • Max Working Pressure : 5.5MPa (check precautions)
  • Working vacuum pressure : -101kPa
  • Working Temperature Range : -29 to 232degreesC (fluid should not be frozen)
วัสดุ
  • Main Body : Stainless steel (equivalent to SUS316)
  • Ball : Stainless steel (equivalent to SUS316)
  • Thrust washer : Fluorine resin (PTFE)
  • Handle : Stainless steel (equivalent to SUS304)
น้ำหนัก 171 g
ประเทศที่ผลิต Japan
ข้อมูลจากผู้ผลิต PISCO NSBVF10-04 (ลิงค์นี้จะพาคุณไปสู่เว็บไซต์ภาษาญี่ปุ่น)
หม่วดหมู่แบรนด์ PISCO
หม่วดหมู่สินค้า อุปกรณ์นิวเมติกส์ ข้อต่อของไหล / ท่อลม บอลวาล์ว บอลวาล์ว
