NICHIAS

1834NA-EOE 10/20K65A

NA Vortex Gasket

฿1,367
฿1,893
แบรนด์ NICHIAS
รหัสสินค้า 1834NA-EOE 10/20K65A
รหัสบาร์โค้ด
รหัสสั่งซื้อ 115-1413
สต็อกในไทย0
สต็อกในญี่ปุ่น0
กำหนดการจัดส่ง โปรดติดต่อเจ้าหน้าที่
ผู้นำเข้า
วิธีการนำเข้า ทางแอร์
ซัพพลายเออร์ TRUSCO JP

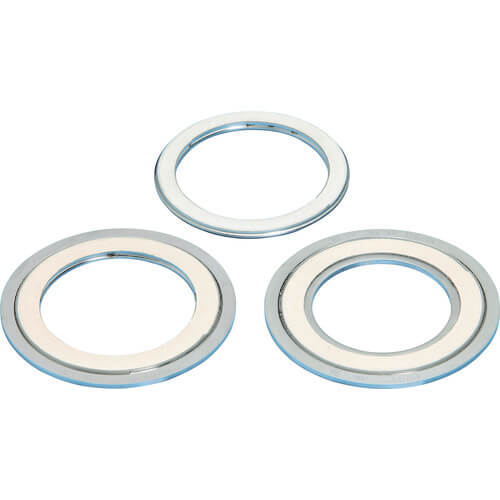

  • A hoop-shape metal sheet and a soft heat resistant paper are alternatively coiled in this economical spiral gasket.
  • Has a characteristic sealing structure, allowing its use under high temperature and high pressure conditions.
  • It goes well with a flange and can seal with a lower tightening force compared to a metal gasket.
ข้อมูลสินค้า
  • Nominal Diameter (A) : 65
  • Nominal Diameter (B) : 2 1/2
  • Inner Diameter (mm) : 87
  • Outer Diameter (mm) : 124
  • Thickness (mm) : 4.5
  • Working Pressure (K) : 10/20
  • Working Temperature Range : -29 to 350degrees
วัสดุ
  • Filler Material : Non-asbestos paper
  • Hoop Material : SUS304
  • Outer Ring Material : SUS304
น้ำหนัก 130 g
การใช้งาน
  • A gasket for flanges of various piping and equipment.
  • ประเทศที่ผลิต Japan
    เว็บของ Supplier NICHIAS 1834NA-EOE 10/20K65A
    หม่วดหมู่แบรนด์ NICHIAS
    หม่วดหมู่สินค้า ปั๊ม / วาล์ว / อุปกรณ์ก่อสร้าง อุปกรณ์ประปา ปะเก็น ปะเก็น
