NICHIAS

1834R-GR-EEE 10/20K32A

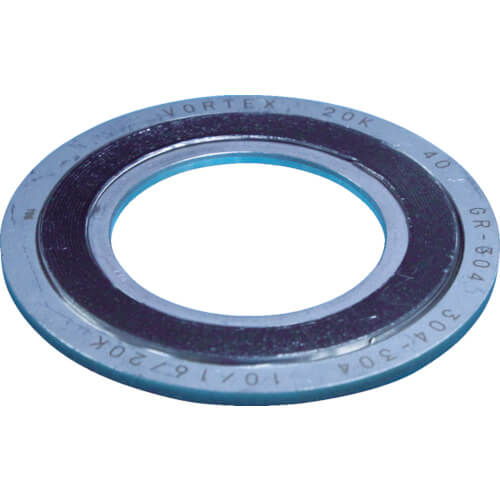

GR Vortex Gasket

฿1,440
฿1,993
แบรนด์ NICHIAS
รหัสสินค้า 1834R-GR-EEE 10/20K32A
รหัสบาร์โค้ด
รหัสสั่งซื้อ 115-1431
สต็อกในไทย0
สต็อกในญี่ปุ่น4
กำหนดการจัดส่ง
ไม่เกิน 4 ชิ้น : 9 วันทำการ
5 ชิ้นขึ้นไป : โปรดติดต่อเจ้าหน้าที่
ผู้นำเข้า
วิธีการนำเข้า ทางแอร์
ซัพพลายเออร์ TRUSCO JP
  • A hoop-shape metal sheet and GRASEAL that has excellent sealing property are alternatively coiled in this gasket.
  • For having a characteristic structure and GRASEAL filler property, it demonstrates excellent sealing property under harsh conditions such as high temperature and high pressure, extremely low temperature, and heat cycles.
  • It goes well with a flange and can seal with a lower tightening force compared to a metal gasket.
ข้อมูลสินค้า
  • Nominal Diameter (A) : 32
  • Nominal Diameter (B) : 1 1/4
  • Inner Diameter (mm) : 43
  • Outer Diameter (mm) : 84
  • Thickness (mm) : 4.5
  • Working Pressure (K) : 10/20
  • Working Temperature Range : -240 to 450degrees
วัสดุ
  • Filler Material : GRASEAL
  • Hoop Material : SUS304
  • Inner and Outer Ring Material : SUS304
น้ำหนัก 90 g
การใช้งาน
  • Areas requiring strict sealing property, such as gas stream.
  • ประเทศที่ผลิต Japan
    เว็บของ Supplier NICHIAS 1834R-GR-EEE 10/20K32A
    หม่วดหมู่แบรนด์ NICHIAS
    หม่วดหมู่สินค้า ปั๊ม / วาล์ว / อุปกรณ์ก่อสร้าง อุปกรณ์ประปา ปะเก็น ปะเก็น
