NICHIAS

1120-32A-1.5T-UN

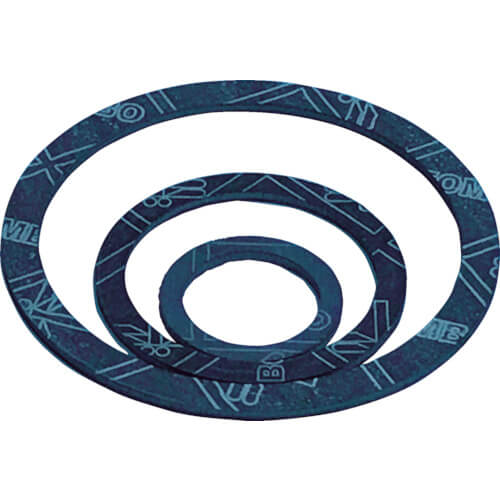

ปะเก็นแผ่น Joint Sheet Gasket TOMBO NO.1120 แบบยูเนี่ยน เส้นผ่านศูนย์กลาง (A) 32

Joint Sheet Gasket

฿64
฿89
แบรนด์ NICHIAS
รหัสสินค้า 1120-32A-1.5T-UN
รหัสบาร์โค้ด
รหัสสั่งซื้อ 115-2608
สต็อกในไทย0
สต็อกในญี่ปุ่น4
กำหนดการจัดส่ง
ไม่เกิน 4 ชิ้น : 9 วันทำการ
5 ชิ้นขึ้นไป : โปรดติดต่อเจ้าหน้าที่
ผู้นำเข้า
วิธีการนำเข้า ทางแอร์
ซัพพลายเออร์ TRUSCO JP
  • Main components are expanded graphite, aramid fiber, and NBR rubber. Has excellent sealing property, steam resistance, and chemical resistant property.
  • Because of the small amount of soluble halogen, it can be used for stainless steel flange.
  • JIS S 3200-7 : 2010 Suitable for water supply equipment, leaching test.
ข้อมูลสินค้า
  • Nominal Diameter (A) : 32
  • Nominal Diameter (B) : 1 1/4
  • Inner Diameter (mm) : 47
  • Outer Diameter (mm) : 57
  • Thickness (mm) : 1.5
  • Working Temperature Range : -200 to 260degrees
วัสดุ
  • Expanded graphite
  • Aramid Fiber
  • NBR
น้ำหนัก 2 g
การใช้งาน
  • Various types of piping for low pressure steam, steam return, cold water, hot water, air conditioning unit drainage, etc.
  • ประเทศที่ผลิต Japan
    เว็บของ Supplier NICHIAS 1120-32A-1.5T-UN
    หม่วดหมู่แบรนด์ NICHIAS
    หม่วดหมู่สินค้า ปั๊ม / วาล์ว / อุปกรณ์ก่อสร้าง อุปกรณ์ประปา ปะเก็น ปะเก็น
