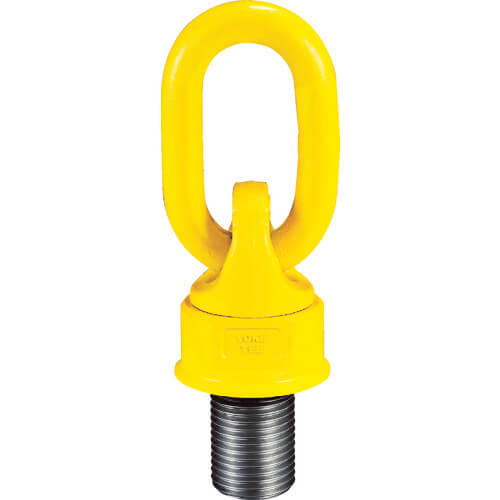

YOKE

8-271-130

YELLOW POINT Swivel Point

เลิกผลิต
แบรนด์ YOKE
รหัสสินค้า 8-271-130
รหัสบาร์โค้ด 4713037053708
รหัสสั่งซื้อ 115-3406
กำหนดการจัดส่ง โปรดติดต่อเจ้าหน้าที่
ผู้นำเข้า
วิธีการนำเข้า ทางแอร์
ซัพพลายเออร์ TRUSCO JP
  • Embedded ball bearing realizes a smooth movement.
  • Ring swings 180 degrees in reference to the attaching surface and rotates 360 degrees about the axis.
  • Lateral lifting and lifting up operations which are impossible by using JIS eye bolts are now possible.
ข้อมูลสินค้า
  • Basic Working Load (t) : 18.0
  • Bolt Size : M48
  • Dimension (mm) G : 98
  • Dimension (mm) A : 65
  • Dimension (mm) F : 235
  • Dimension (mm) B : 110
  • EN1677-1, ASME B30.26 compliant
  • DGUV GS-OA-15-04 certified
น้ำหนัก 6.1kg
การใช้งาน
  • For transportation and turning over of large-size dies.
  • ประเทศที่ผลิต Taiwan
    เว็บของ Supplier YOKE 8-271-130
