TOK

TD38A1-1.5K

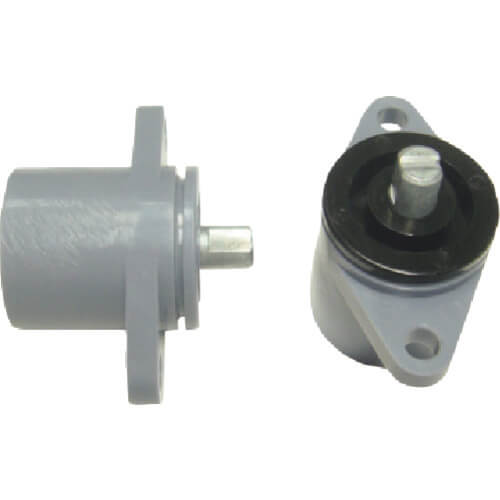

Rotary Damper

฿520
฿720
แบรนด์ TOK
รหัสสินค้า TD38A1-1.5K
รหัสบาร์โค้ด
รหัสสั่งซื้อ 116-5077
สต็อกในไทย0
สต็อกในญี่ปุ่น0
กำหนดการจัดส่ง โปรดติดต่อเจ้าหน้าที่
ผู้นำเข้า
วิธีการนำเข้า ทางแอร์
ซัพพลายเออร์ TRUSCO JP
  • Product weight has been reduced by the use of plastic.
  • One-way damper.
  • When starting to close from the open state, large resistance is not caused.
  • Also, when opening from the closed state, large resistance is not caused.
ข้อมูลสินค้า
  • Total Length (mm) : 32
  • Outer Dimensions (mm) : 22
  • Threaded Hole Number : 2
  • Hole Diameter (mm) : 4.2
  • Rated Torque (N,m) : 0.15
  • Possible rotation angle : 180degrees
  • Durability : Open and close 100 thousand times (free fall)
  • Standard : Should be operated with the rated torque or equivalent weight at 150degrees for 2 to 10 seconds
  • Working Temperature Range : 0 to 40degreesC
วัสดุ
  • Housing, cap : Polyacetal resin (POM)
  • Shaft : Zinc die casting
น้ำหนัก 21 g
การใช้งาน
  • For soft closing of a cover of an equipment or a flapper.
  • ประเทศที่ผลิต Japan
